43″ Bollard Wattage/CCT Select Louvered Reflector BZ

  • Product Code:

    BOL-WS-3CS-DL-BZ

  • Stock Code:

    0614-5773
View Specifications

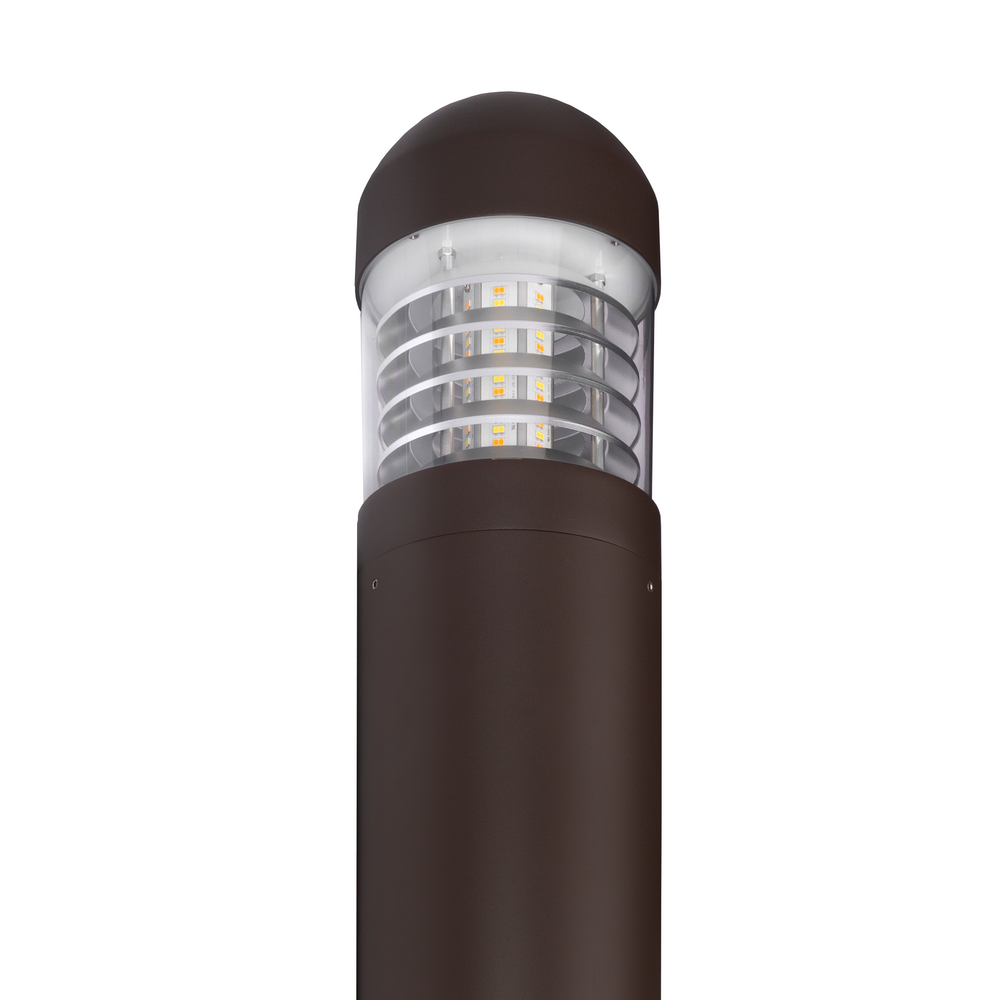

43" Bollard Wattage/CCT Select Louvered Reflector BZ

Product Details

The BOL Series 43″ dome top bollard is designed for commercial outdoor lighting applications. Selectable wattage and color temperature settings provide flexibility across projects while delivering reliable illumination, improved visibility, and dependable performance.

Product

BOL-WS-3CS-DL-BZ
0614-5773
The BOL Series 43″ dome top bollard is designed for commercial outdoor lighting applications. Selectable wattage and color temperature settings provide flexibility across projects while delivering reliable illumination, improved visibility, and dependable performance.

Specifications

Ballast Type LED Driver
CRI 80
Dimming 0-10V
Efficacy 75 lm/W
Finish Color Bronze
Finish Type Powder Coated
Housing Material Aluminum
Lens Material Polycarbonate
Lumen Output 1000/1420/1800 lm
Luminaire Beam Angle 360 °
Luminaire Type Bollard
Nominal CCT 3000K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Series BOLWSCS
Source Type LED
Wattage 24/19/14 W
Weight 12.7 lbs
Wiring Type 3-Wire (L-N-G) 2-wire(010Vdc)

Ordering

Master Case Height 8.26 in.
Master Case Length 45.66 in.
Master Case Weight 15.9 lbs
Master Case Width 8.26 in.
Package QTY 1
