4″ FIRE RATED SLIM DISK WAFER, 5 COLOR SELECTABLE, 120V

  • Product Code:

    CLY4-5CS-WH-FR

  • Stock Code:

    0673-3659
View Specifications

Product Details

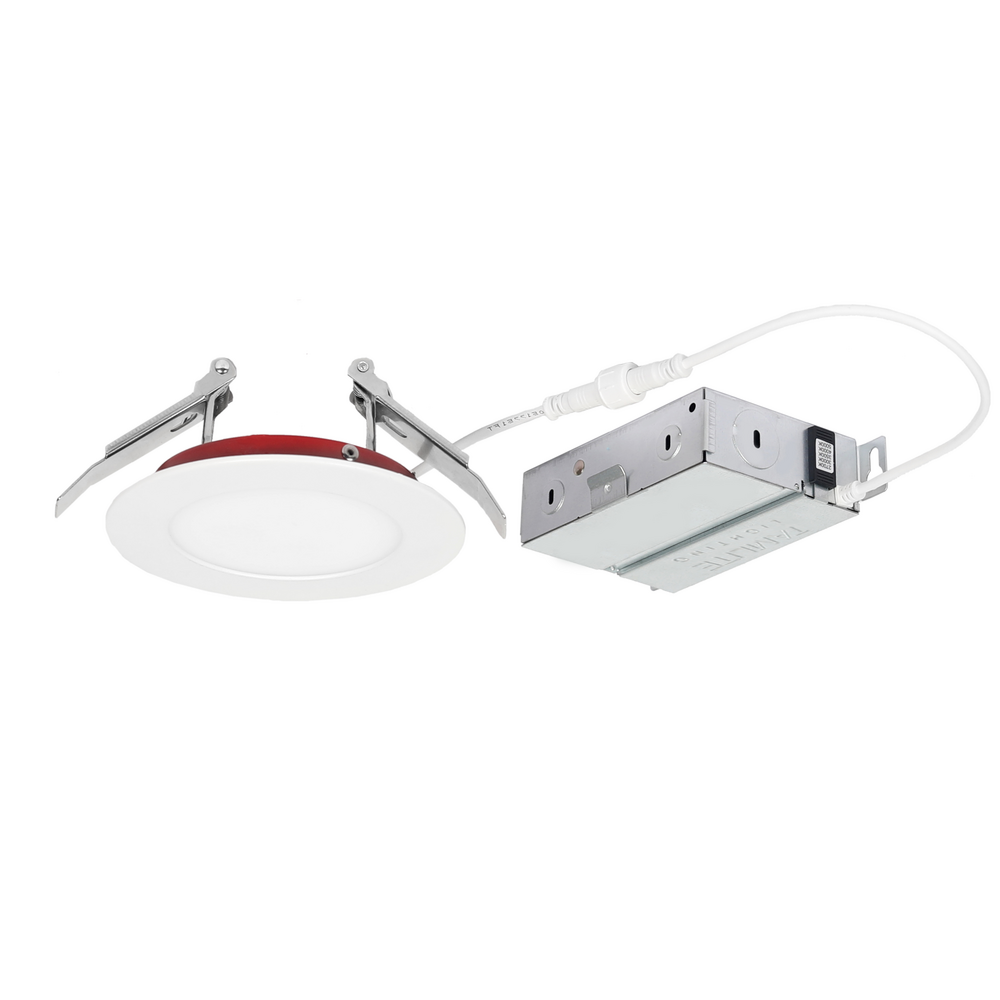

The CLY-5CS-FR Series Fire Rated recessed LED wafer down light features a remote driver allowing the fixture to minimize vertical height without the for additional housings. The steel construction is designed to conform to UL263, ASTM E119, and CAN ULC S101, the extended clips allow for installation into thicker fire rated plenum.

Product

CLY4-5CS-WH-FR
0673-3659
The CLY-5CS-FR Series Fire Rated recessed LED wafer down light features a remote driver allowing the fixture to minimize vertical height without the for additional housings. The steel construction is designed to conform to UL263, ASTM E119, and CAN ULC S101, the extended clips allow for installation into thicker fire rated plenum.

Specifications

Ballast Type External LED Driver
CRI 90
Finish Color White
Housing Material Steel
Input Frequency 60 Hz
Lumen Output 700 lm
Mounting Recessed
Nominal CCT 2700K/3000K/3500K/4000K/5000K
Rated Input Voltage 120 VAC
Series CLY
Wattage 10 W
Weight 1.25 lbs

Ordering

Case Height 6.69 in.
Case Length 6.89 in.
Case QTY 1
Case Weight 1.21 lbs
Case Width 2.76 in.
Master Case Height 13.98 in.
Master Case Length 14.31 in.
Master Case QTY 12
Master Case Weight 14.53 lbs
Master Case Width 8.86 in.
