CNPY 40W Canopy Light Wattage/CCT Select

  • Product Code:

    CNPY-40WS-3CS-WH

  • Stock Code:

    0742-1574
View Specifications

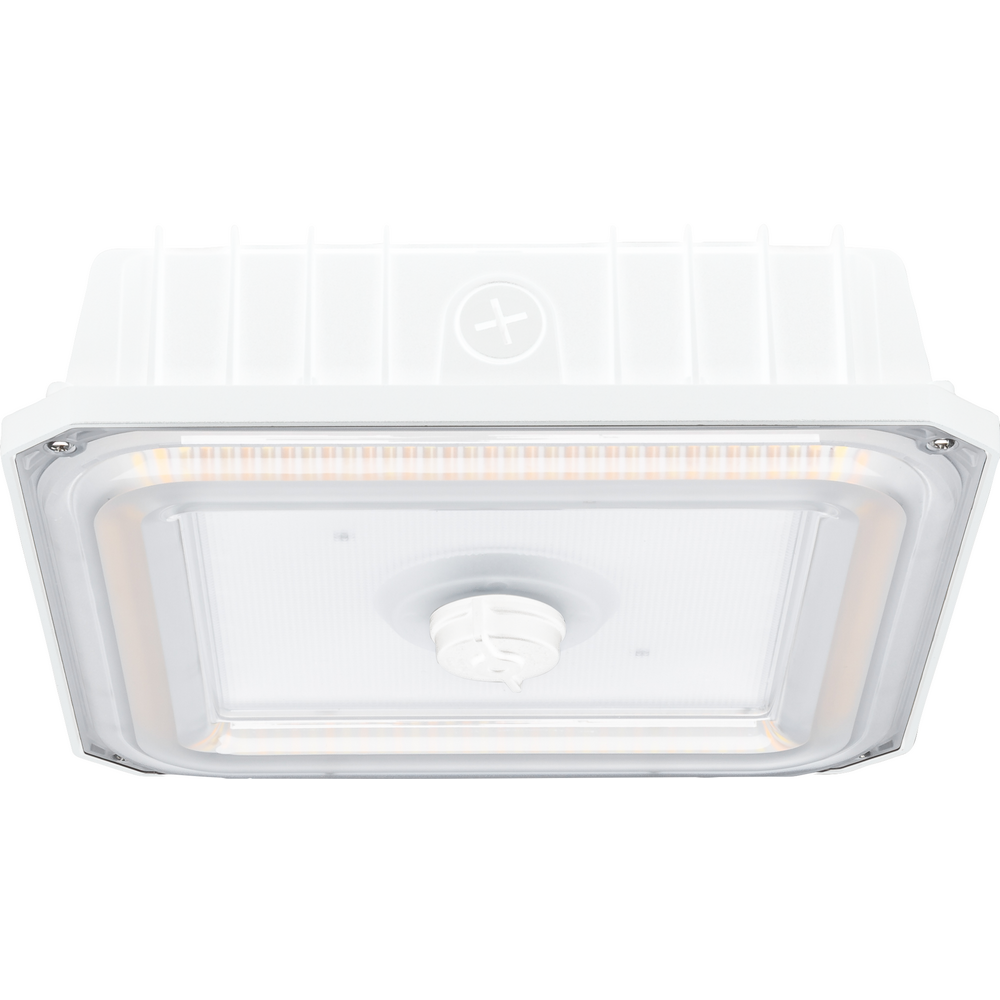

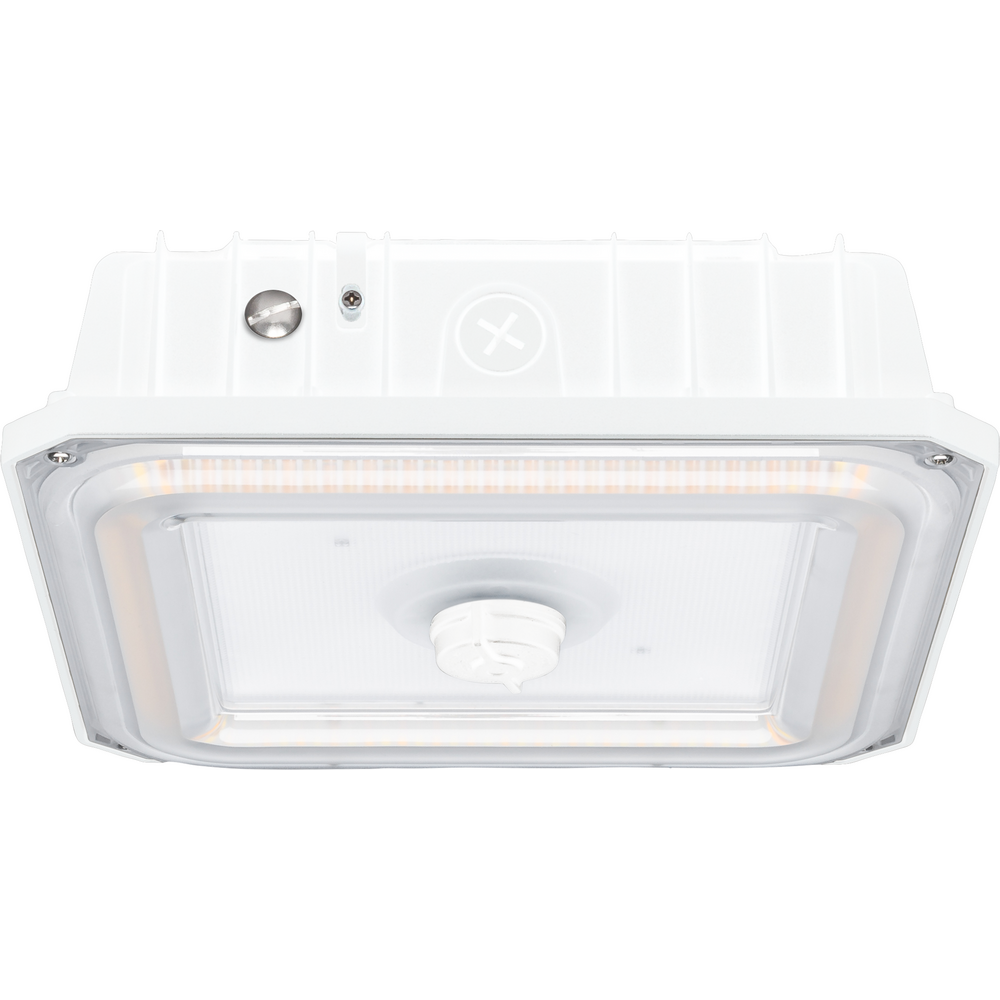

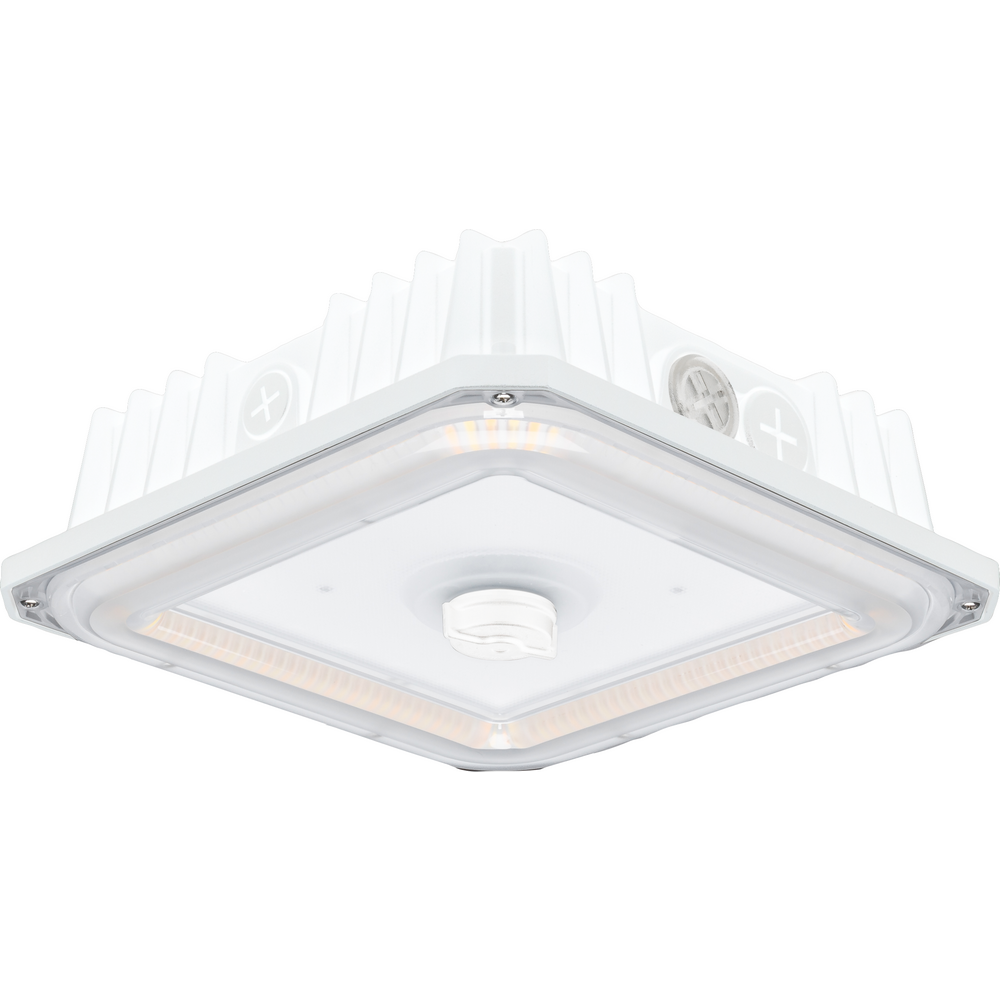

CNPY 40W Canopy Light Wattage/CCT Select
CNPY 40W Canopy Light Wattage/CCT Select - Image 2
CNPY 40W Canopy Light Wattage/CCT Select - Image 3
CNPY 40W Canopy Light Wattage/CCT Select - Image 4
CNPY 40W Canopy Light Wattage/CCT Select - Image 5

Product Details

The Tamlite Lighting CNPY LED Canopy Light is a top choice for efficient, high-quality outdoor illumination. With its durable aluminum construction and stylish white finish, this fixture is perfect for enhancing visibility in parking garages, industrial settings, and covered walkways.

Product

CNPY-40WS-3CS-WH
0742-1574
The Tamlite Lighting CNPY LED Canopy Light is a top choice for efficient, high-quality outdoor illumination. With its durable aluminum construction and stylish white finish, this fixture is perfect for enhancing visibility in parking garages, industrial settings, and covered walkways.

Specifications

Ballast Type LED Driver
Beam Angle 120 °
CRI 80
Dimming 0-10V
Efficacy 145 lm/W
Finish Color White
Finish Type Powder Coated
Housing Material Aluminum
Lens Material Polycarbonate
Lumen Output 3480/4640/5800 lm
Luminaire Type Canopy
Mounting Ceiling or Soffit
Nominal CCT 3000K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-347 VAC
Series CNPY
Source Type LED
Surge Suppression 6000 Volts
Wattage 40/32/24 W
Wiring Type 3-Wire (L-N-G) 2-wire(010Vdc)

Ordering

Case Height 4.72 in.
Case Length 10.23 in.
Case QTY 1
Case Weight 3.75 lbs
Case Width 9.84 in.
Master Case Height 10.24 in.
Master Case Length 20.47 in.
Master Case QTY 4
Master Case Weight 18.25 lbs
Master Case Width 11.02 in.
