6″ IC AIR – TIGHT NEW WORK HOUSING WITH QUICK CONNECT

  • Product Code:

    IC206ATQ

  • Stock Code:

    0253-5345
View Specifications

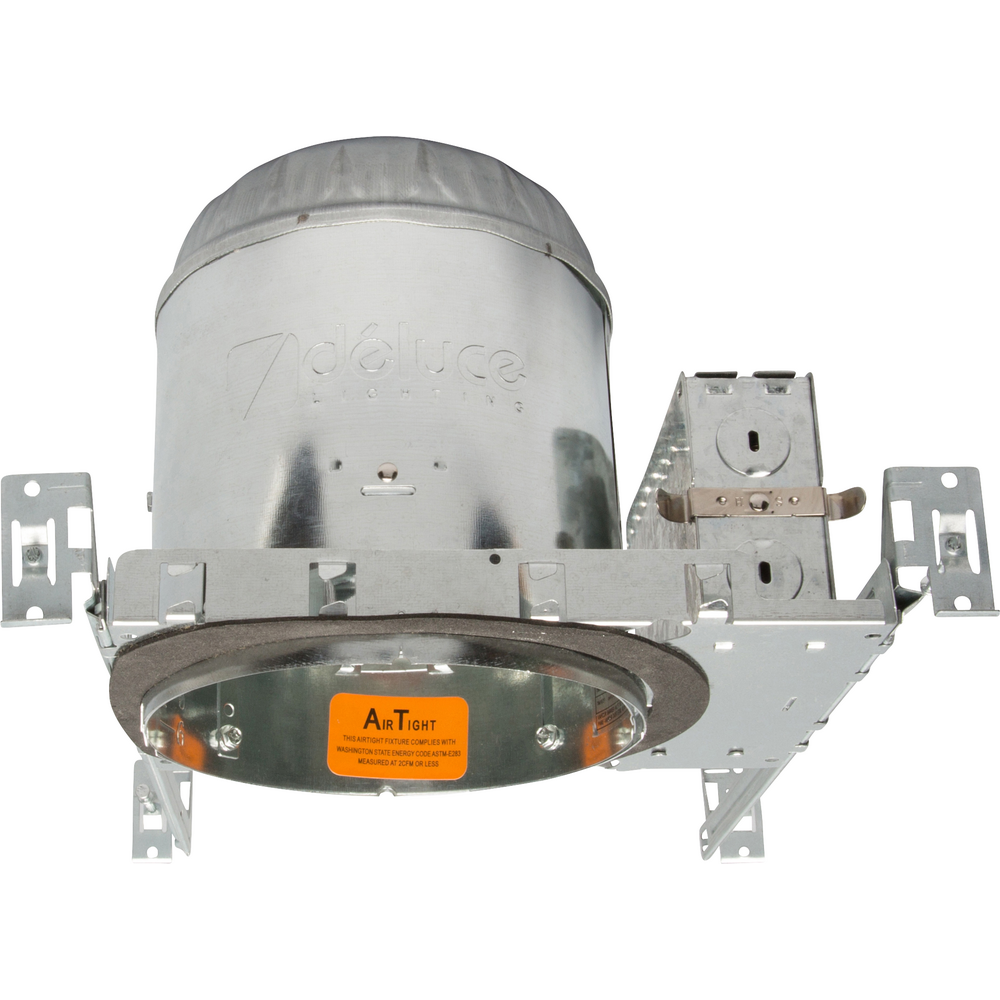

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT

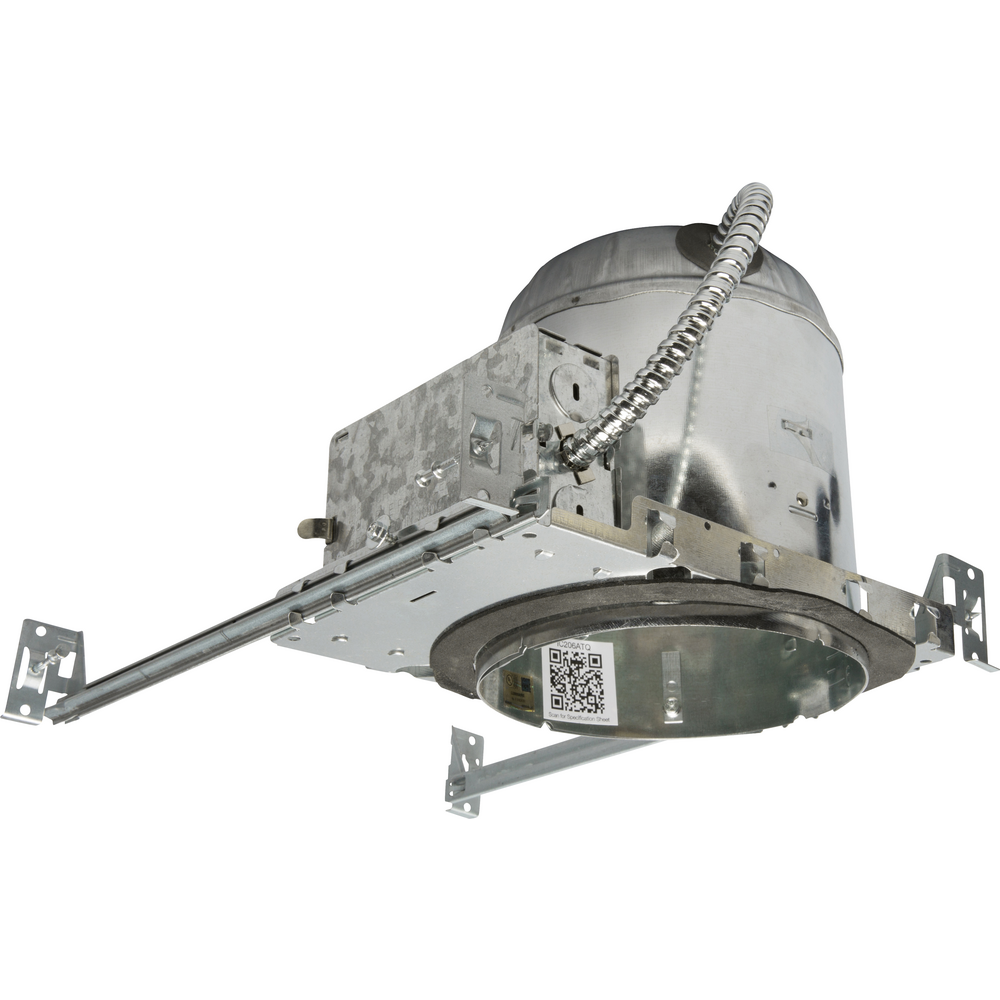

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 2

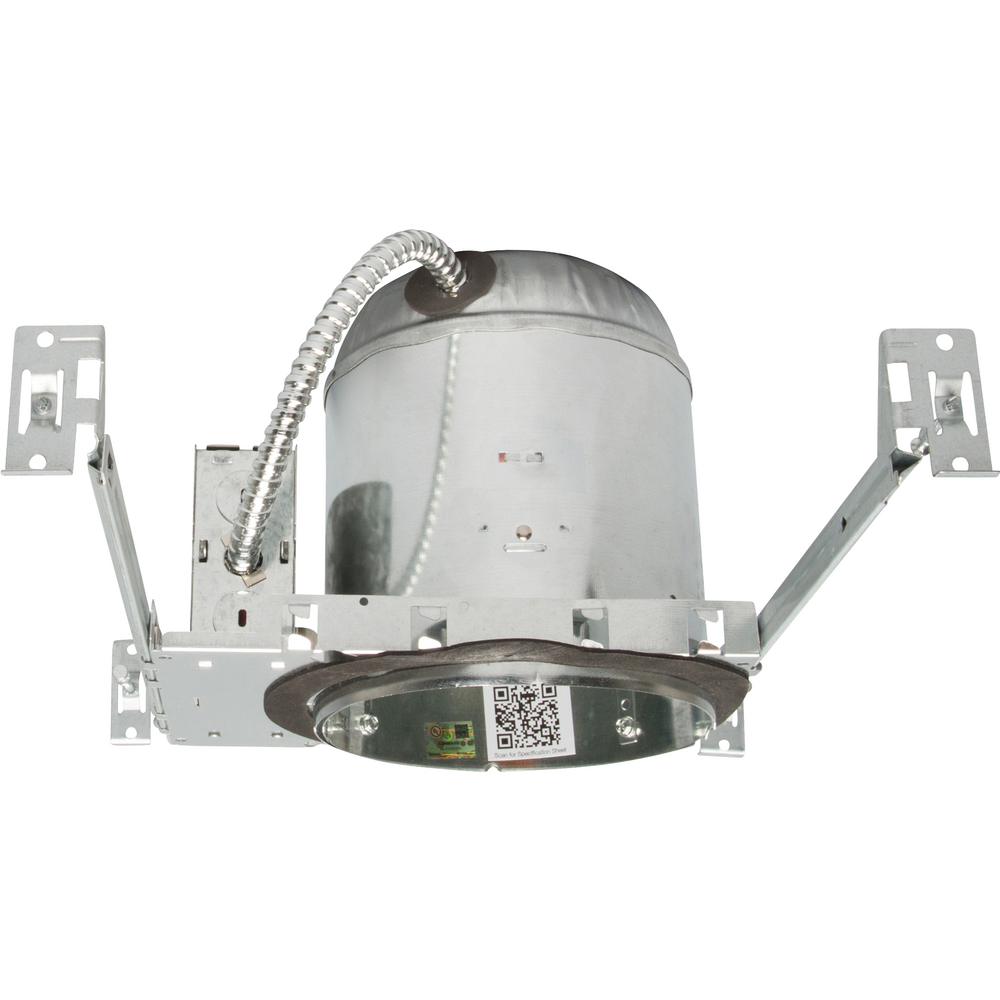

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 3

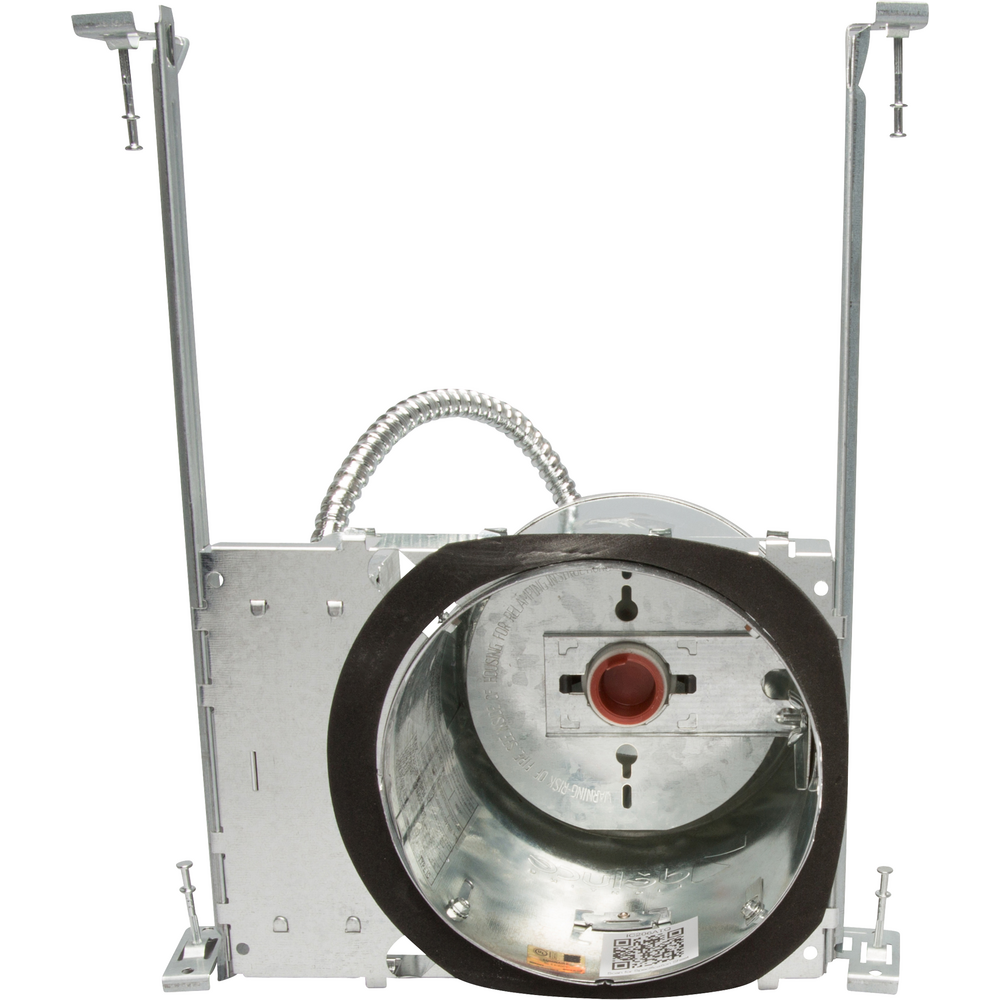

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 4

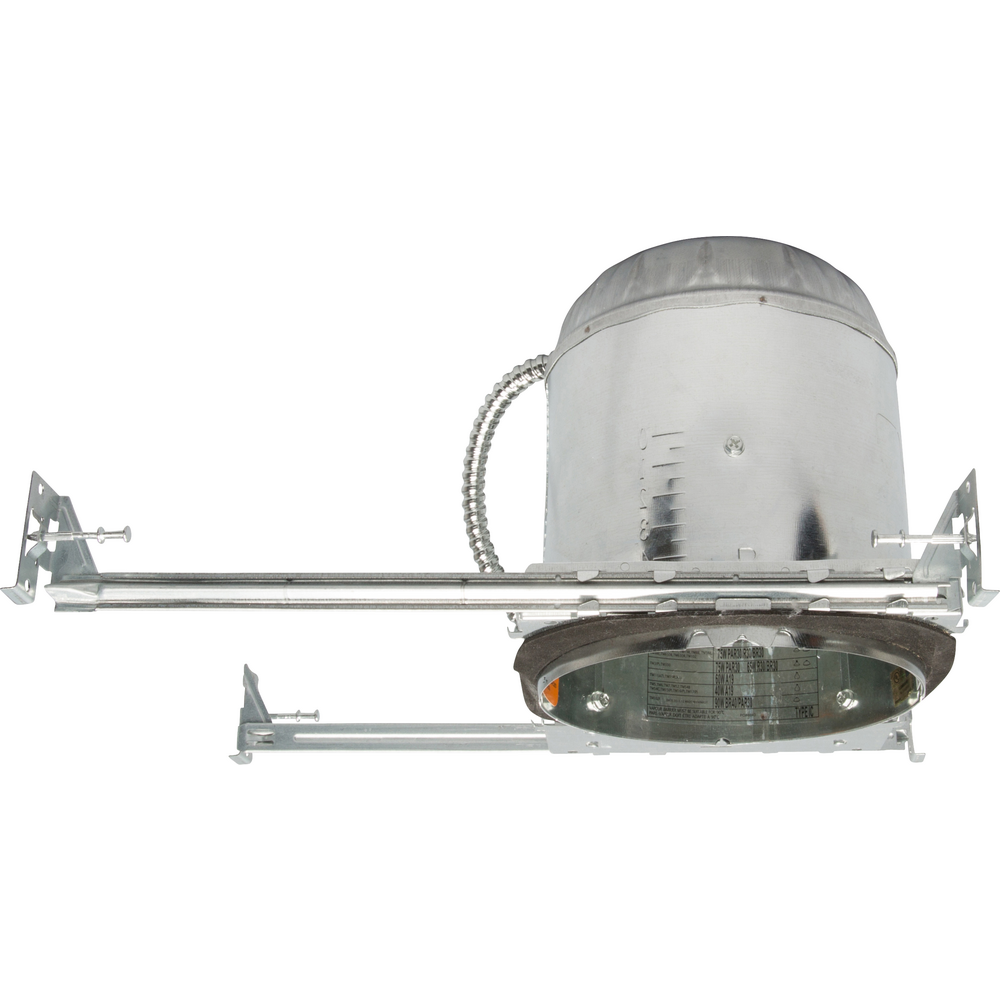

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 5

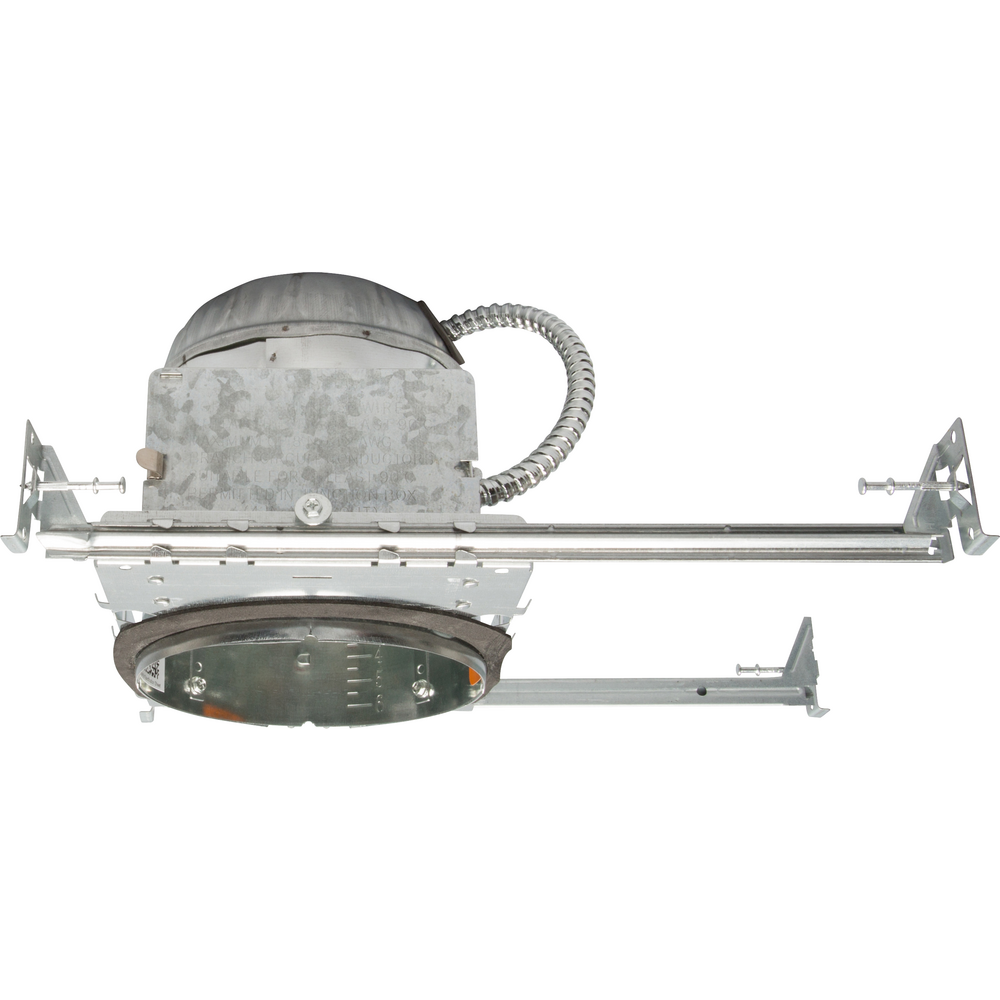

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 6

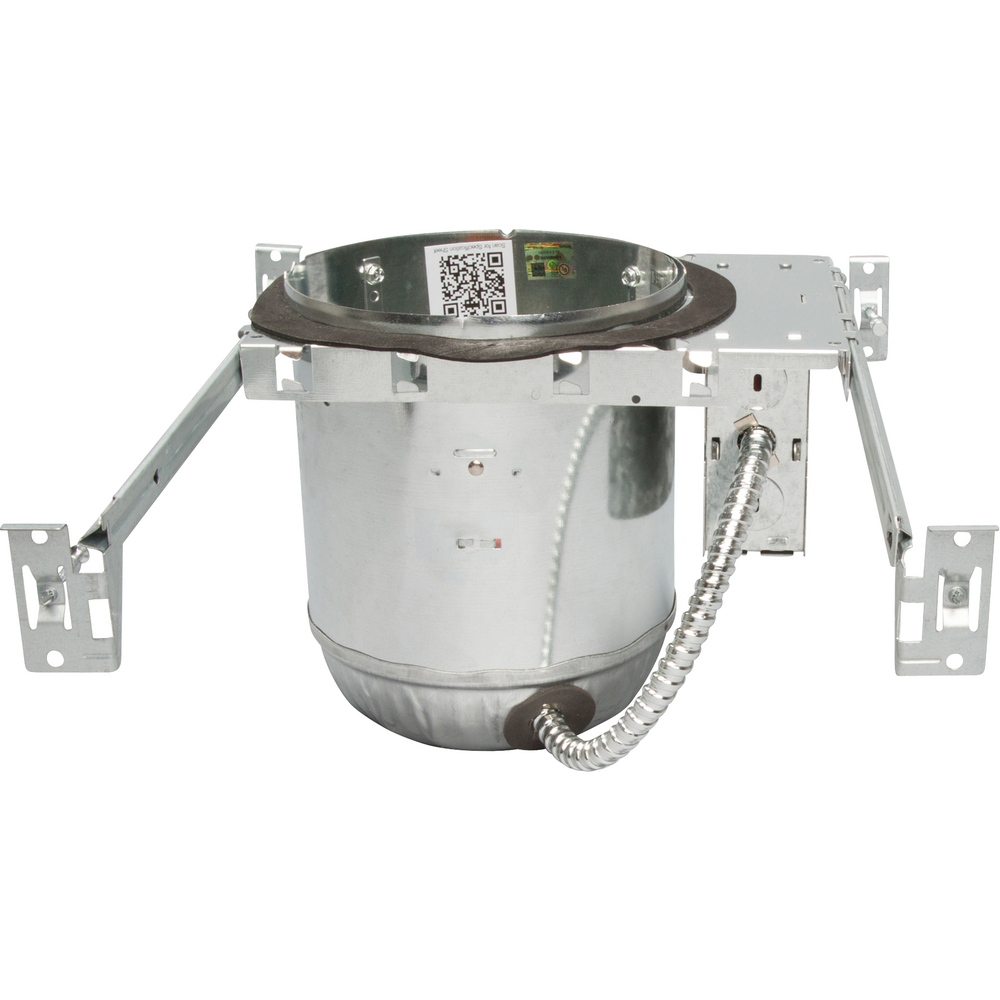

6" IC AIR - TIGHT NEW WORK HOUSING WITH QUICK CONNECT - Image 7

Product Details

The Tamlite Lighting IC206ATQ 6″ IC-Rated New Work Housing with Quick Connect and Air Tight Features is an essential choice for new construction lighting installations. This robust, 120-volt AC recessed lighting housing supports a single incandescent or LED lamp. With features like thermal protection, adjustable housing, and a UL-listed junction box, this product ensures safe, reliable, and flexible installation options. Ideal for both residential and commercial settings, the IC206ATQ enhances any space with efficient, direct line voltage lighting.

Features

  • Thermally protected against misuse of insulation materials and improper lamping
  • J-box is listed for through-branch circuit wiring
  • Housing adjusts to accommodate various ceiling thicknesses
  • Medium base porcelain socket on adjustable mounting bracket
  • Pre-installed bar hangers allow for free positioning within a 24″ joist span
  • Triangulated bar hangers with nails and leveling tab on the footprint
  • Bar hangers designed to fit T-bar spine without additional clamps

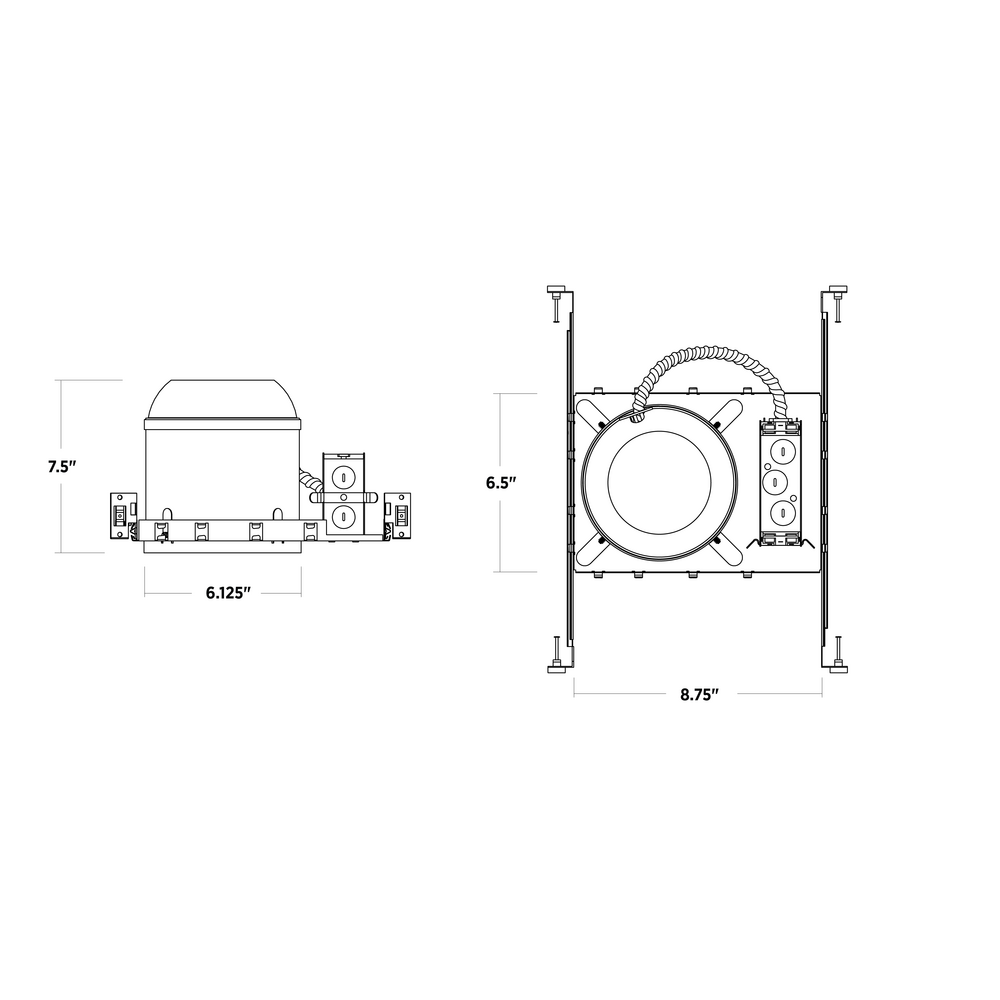

  • 7 1/2″ height allows use in 2″ x 8″ construction

    • Product

    IC206ATQ
    0253-5345
    The Tamlite Lighting IC206ATQ 6″ IC-Rated New Work Housing with Quick Connect and Air Tight Features is an essential choice for new construction lighting installations. This robust, 120-volt AC recessed lighting housing supports a single incandescent or LED lamp. With features like thermal protection, adjustable housing, and a UL-listed junction box, this product ensures safe, reliable, and flexible installation options. Ideal for both residential and commercial settings, the IC206ATQ enhances any space with efficient, direct line voltage lighting.

    Specifications

    Housing Material Galvanized Steel
    Product Type Product
    Rated Input Voltage 120 VAC
    Series IC
    Weight 2.89 lbs

    Ordering

    Master Case Height 8 in.
    Master Case Length 21 in.
    Master Case QTY 6
    Master Case QTY UOM ea
    Master Case Weight 19.55 lbs
    Master Case Width 19 in.
    Pallet QTY 216
    Pallet QTY UOM ea
