LED emergency combo unit red letters BK 120/277V SD

  • Product Code:

    LXPC3RBEMSD

  • Stock Code:

    0493-0815
View Specifications

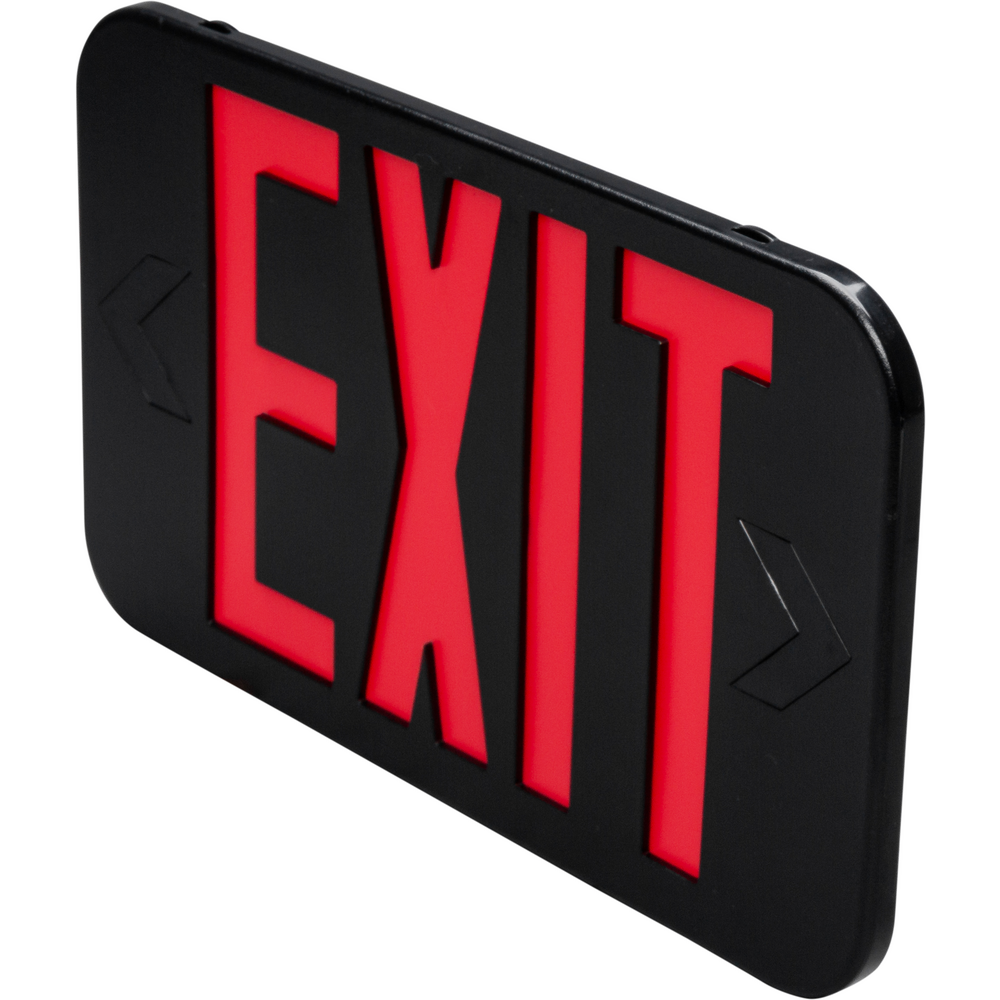

LED emergency combo unit red letters BK 120/277V SD

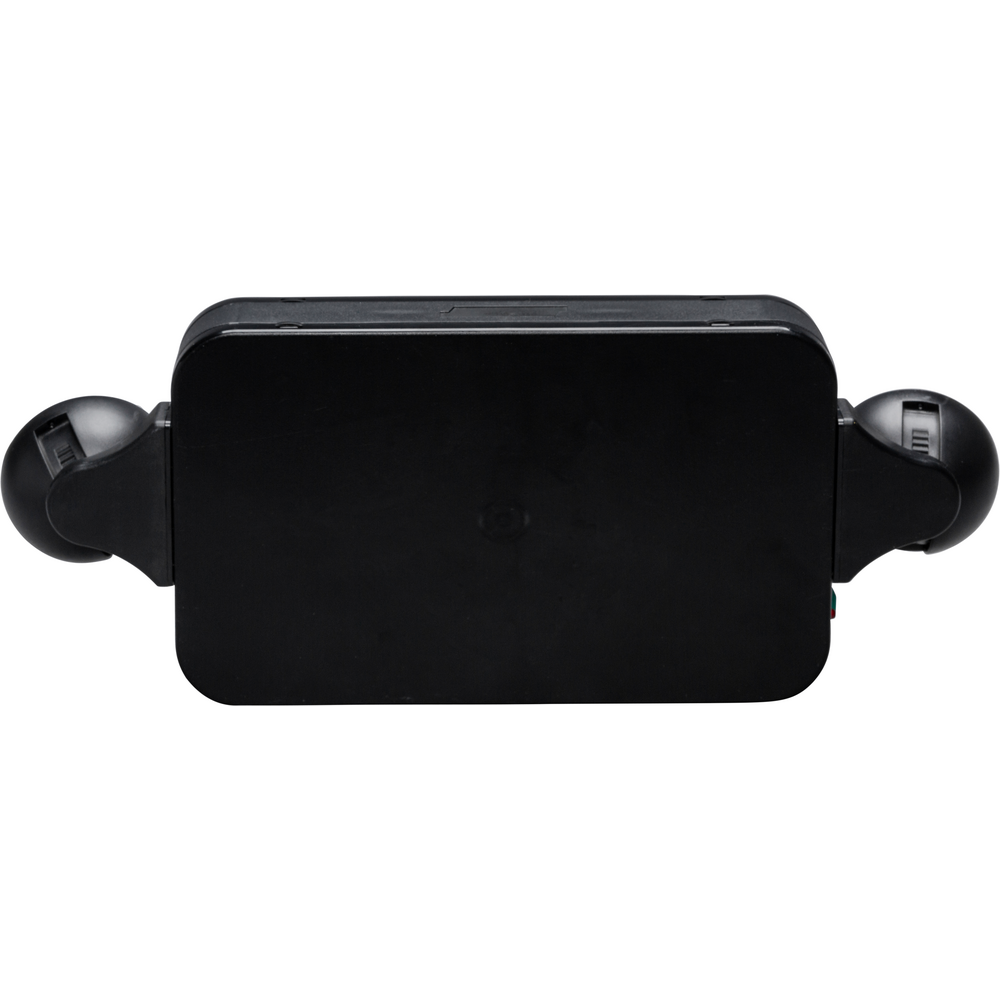

LED emergency combo unit red letters BK 120/277V SD - Image 2

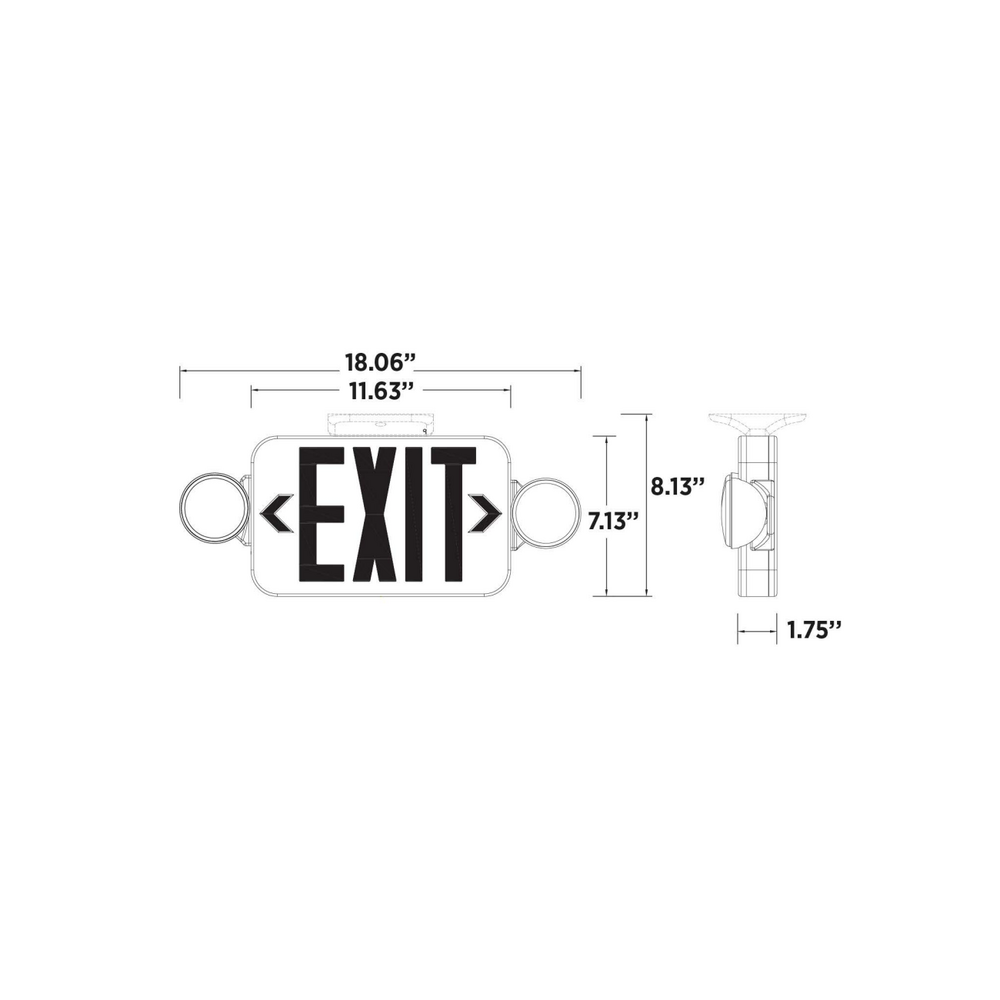

LED emergency combo unit red letters BK 120/277V SD - Image 3

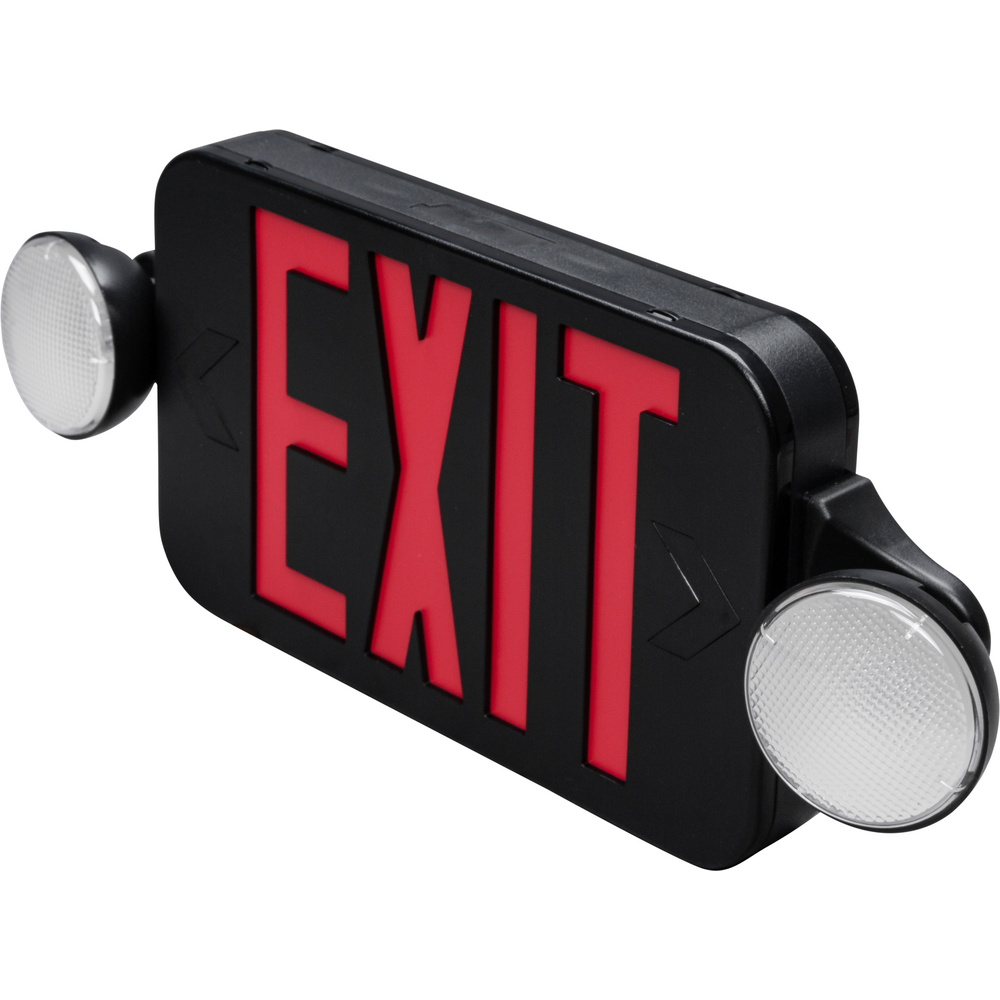

LED emergency combo unit red letters BK 120/277V SD - Image 4

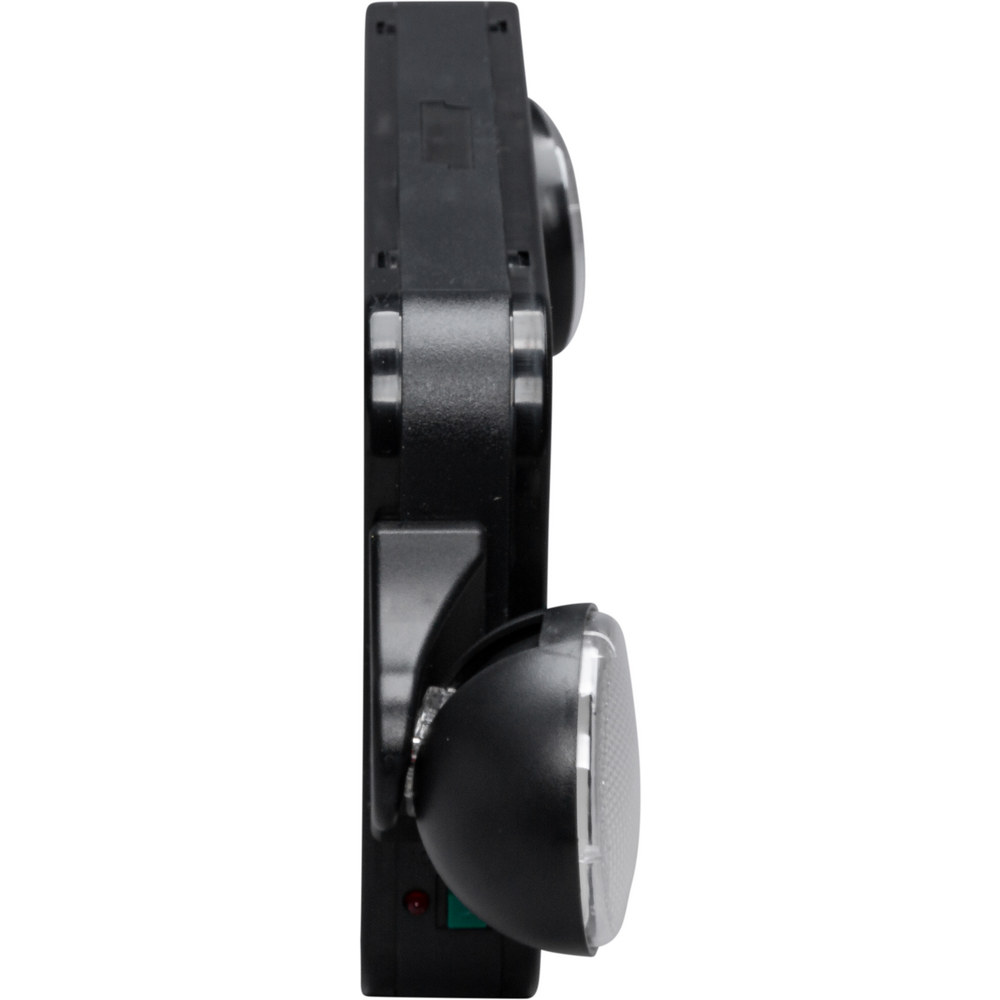

LED emergency combo unit red letters BK 120/277V SD - Image 5
LED emergency combo unit red letters BK 120/277V SD - Image 6

Product Details

The LXPC Series Emergency Combination Unit features dual adjustable LED lamp heads, red letters and a 90-minute battery backup. Designed with a durable thermoplastic housing which includes cover plates for single or double-face installations. Ideal for offices, schools, retail spaces, and other commercial applications.

Features

  • Injection-molded, 5VA flame retardant, high impact, thermoplastic housing
  • Labor saving fixture design with an easy snap-fit construction
  • Energy efficient LED light source with round ultra-bright adjustable LED heads
  • Environmentally friendly Ni-Cad battery
  • Test switch and AC power indicator light
  • Universal mounting canopy for wall, ceiling or end mount applications
  • Dual voltage for 120 or 277V operation

    • Product

    LXPC3RBEMSD
    0493-0815
    The LXPC Series Emergency Combination Unit features dual adjustable LED lamp heads, red letters and a 90-minute battery backup. Designed with a durable thermoplastic housing which includes cover plates for single or double-face installations. Ideal for offices, schools, retail spaces, and other commercial applications.

    Specifications

    Finish Type Plastic
    Height 7.125 in.
    Housing Material Thermoplastic
    Length 18 in.
    Lens Material Polycarbonate
    Lumen Output 60 lm
    Luminaire Type Exit and Emergency Combo
    Mounting Surface
    Product Type Product
    Series LXPC
    Wattage 4.1 W
    Weight 1.9 lbs
    Width 1.75 in.
    Wiring Type 3-Wire (L-N-G)

    Ordering

    Case Height 4 in.
    Case Length 19.5 in.
    Case QTY 1
    Case Weight 3.5 lbs
    Case Width 9 in.
    Master Case Height 9.25 in.
    Master Case Length 20 in.
    Master Case QTY 6
    Master Case Weight 18 lbs
    Master Case Width 16.5 in.
    Package Height 3.75 in.
    Pallet Height 60 in.
    Pallet Length 48 in.
    Pallet QTY 180
    Pallet Weight 565 lbs
    Pallet Width 40 in.
