2X4 VOLUMETRIC CCT 35/4K/5K WATT SCT

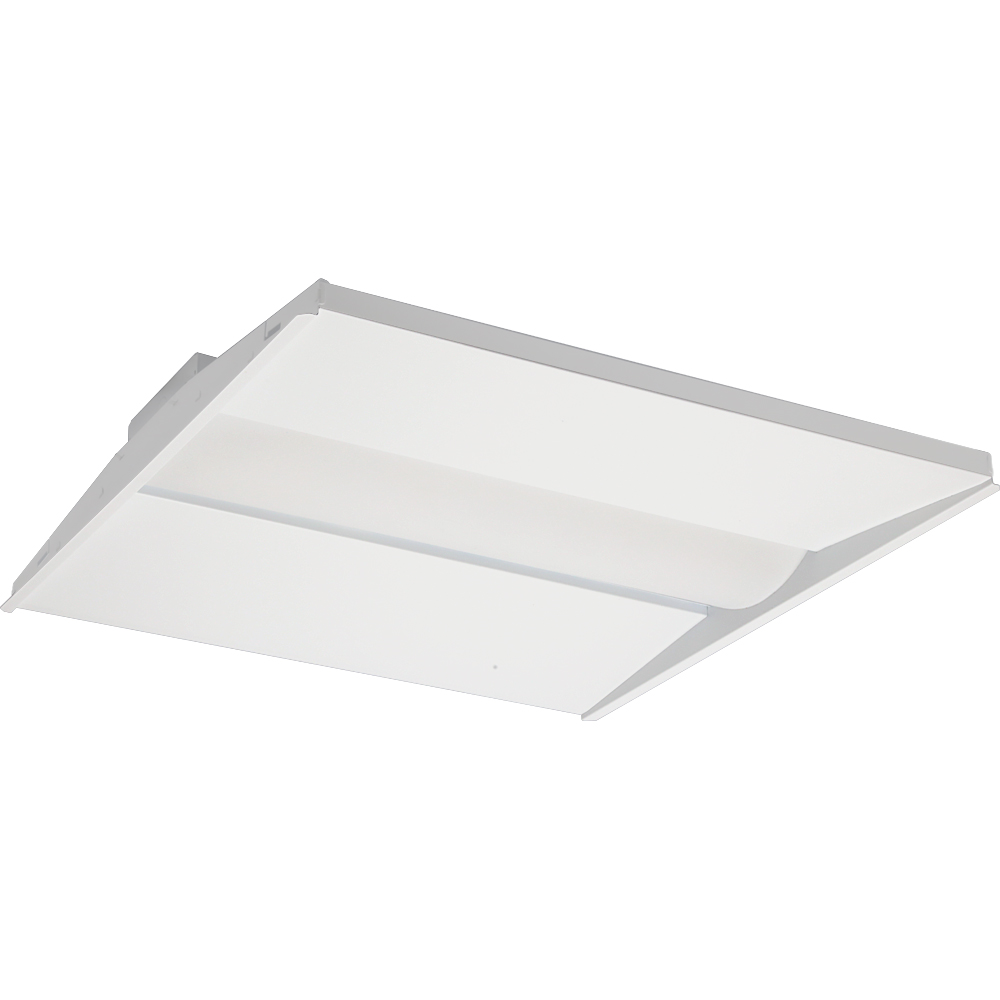

The STVLED Color Selectable is a slim volumetric direct/indirect troffer featuring a center light channel that delivers uniform illumination with high visual comfort. Integrated color and wattage selectability provide added flexibility to meet a wide range of application and specification needs. Construction The body is constructed of 24 gauge, made in USA commercial grade steel with hot dip galvanized finish (6.5μm on both sides). Paint after fabriacation (PAF) of galvanized body add high resistance to rust over its lifetime. Dimming LED drivers deliver dimming from a 0-10V. Dims to 10% standard. Installation The STVLED CS are recessed troffers indented for use in standard drop ceiling grids. Drivers and internal components are accessible from the plenum. Damp location listed. End plates contain easy-to-position integral T-bar clips for securely attaching the luminaire to the T-grid. NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
