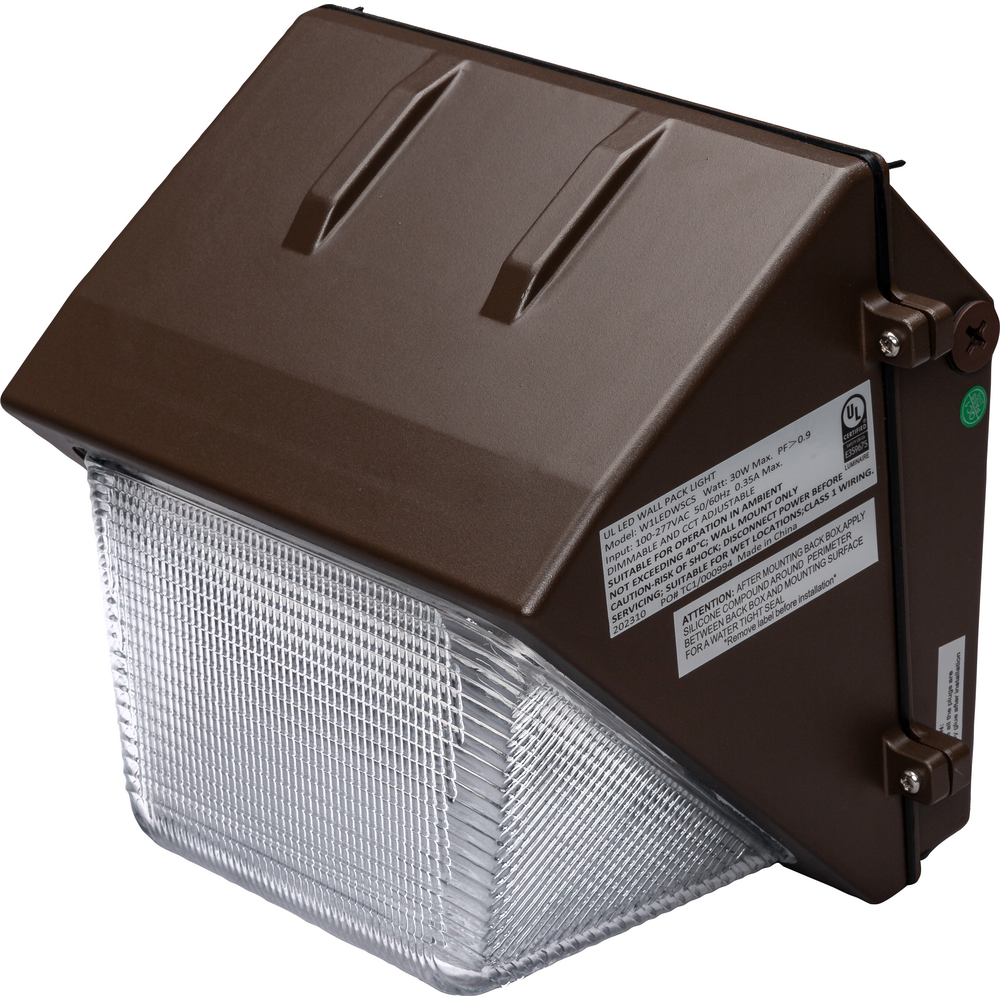

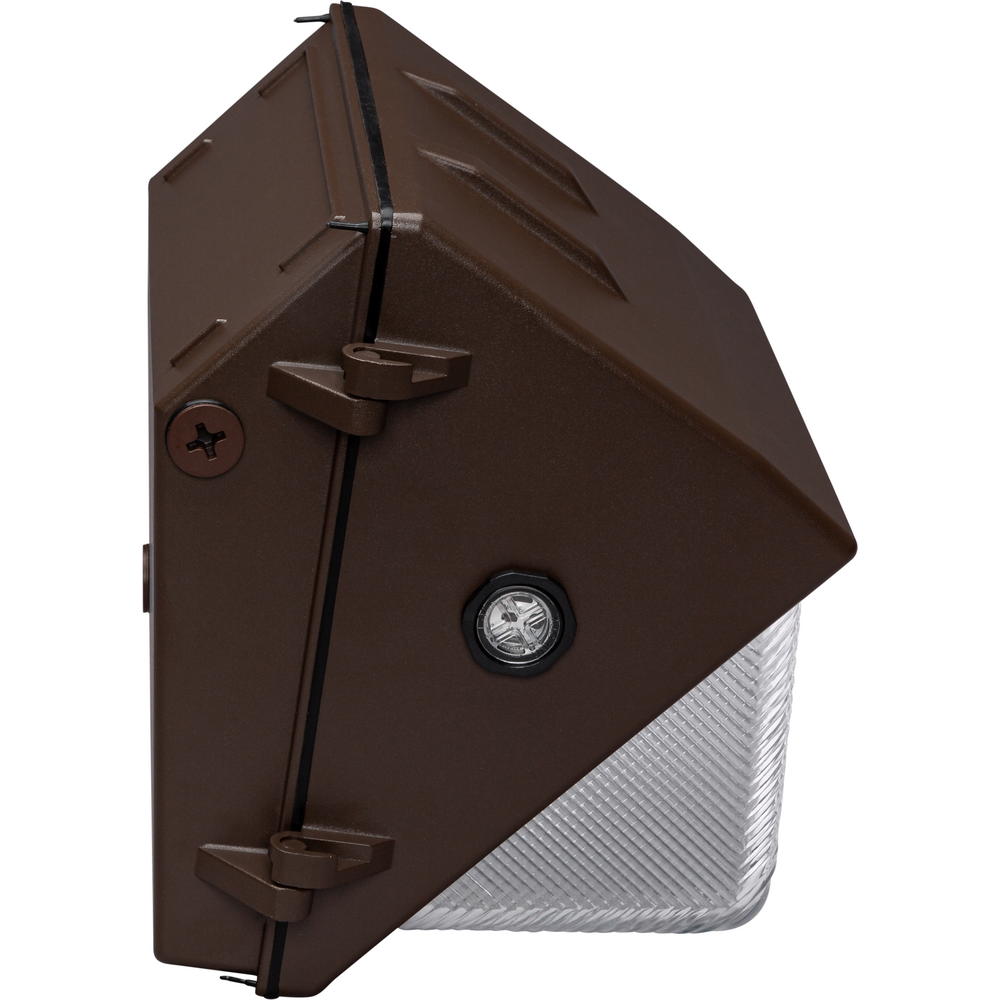

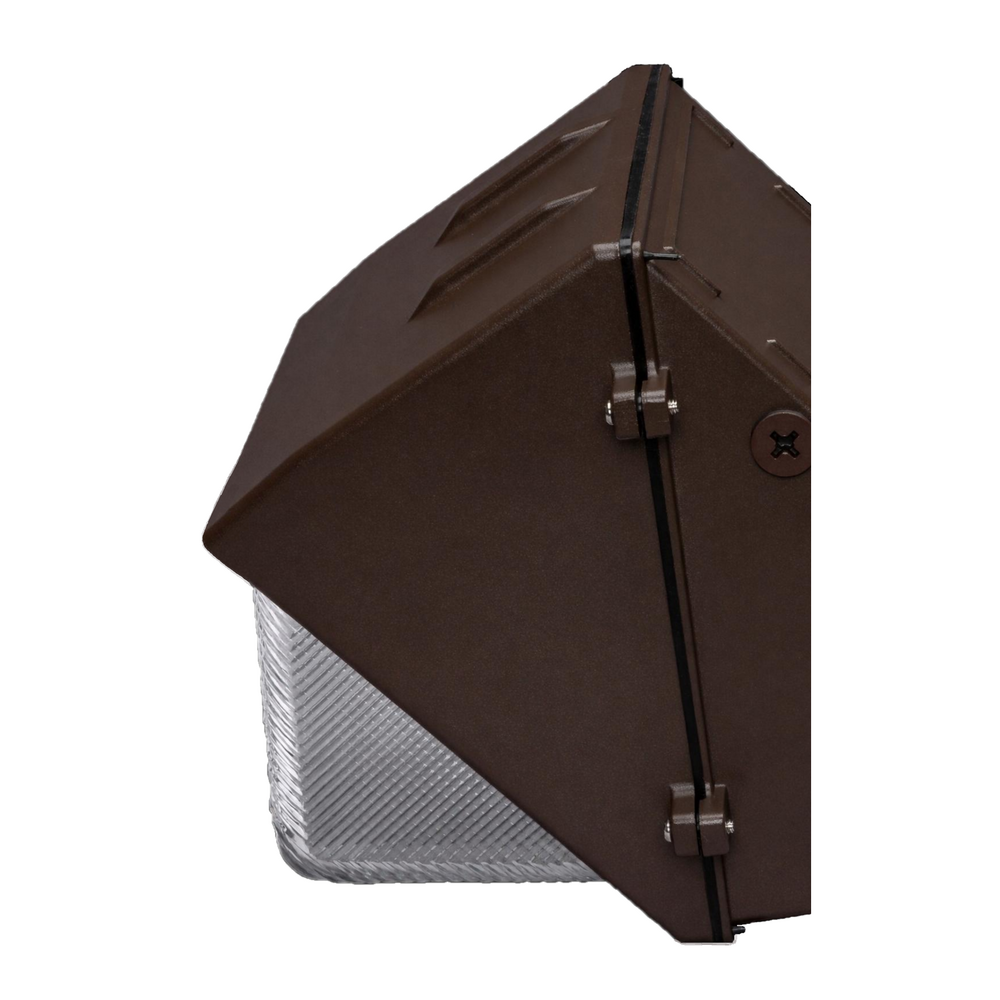

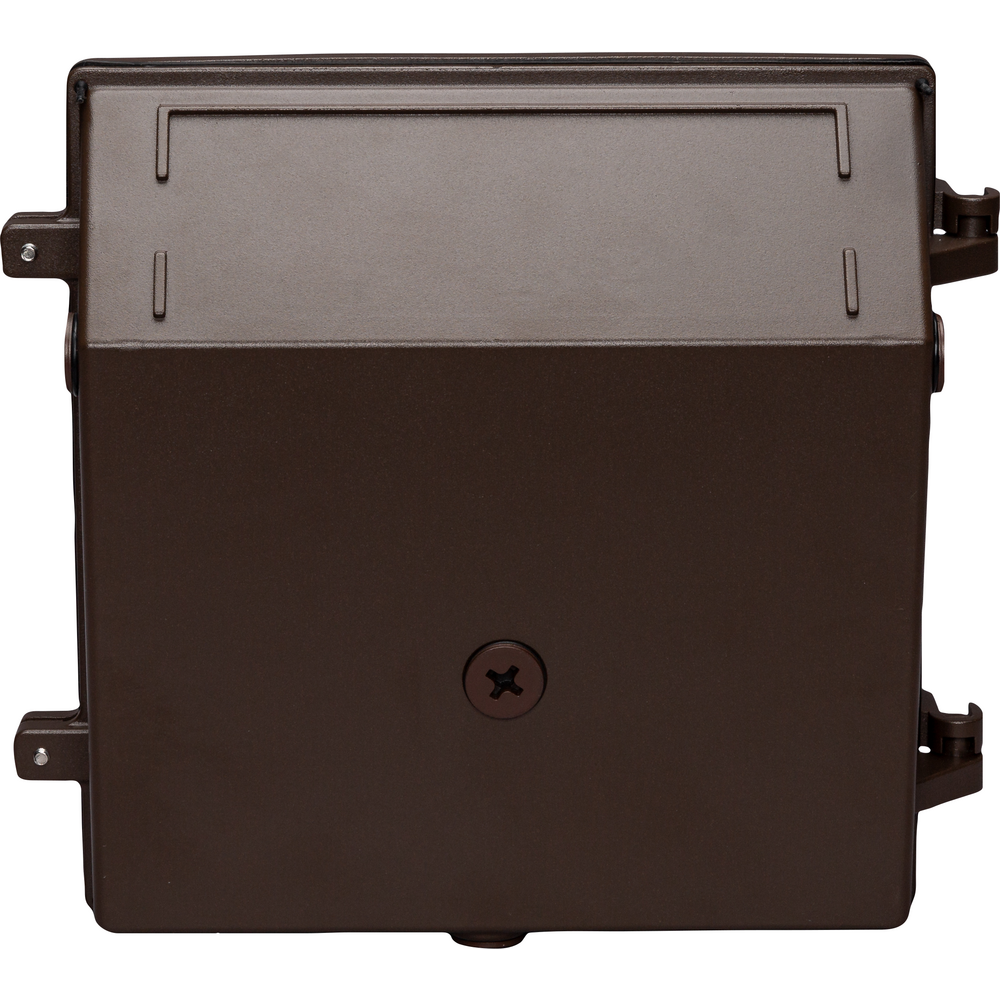

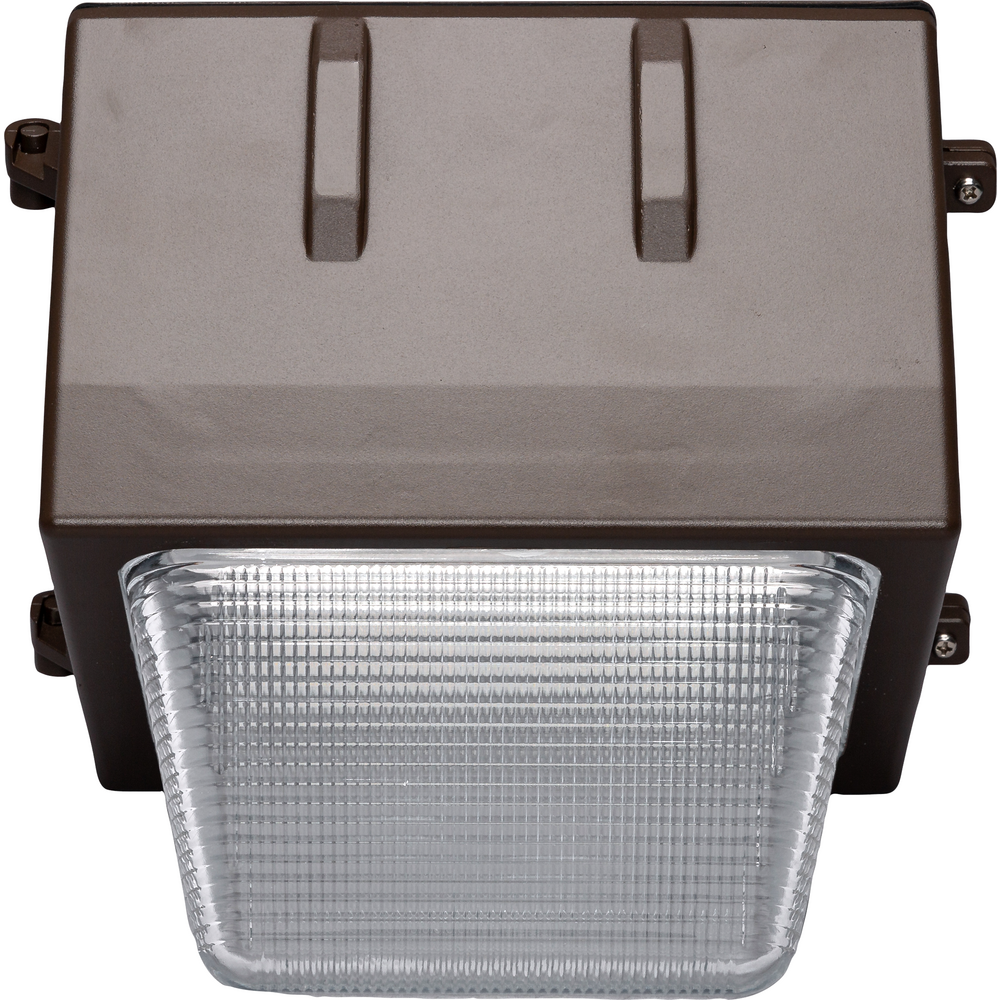

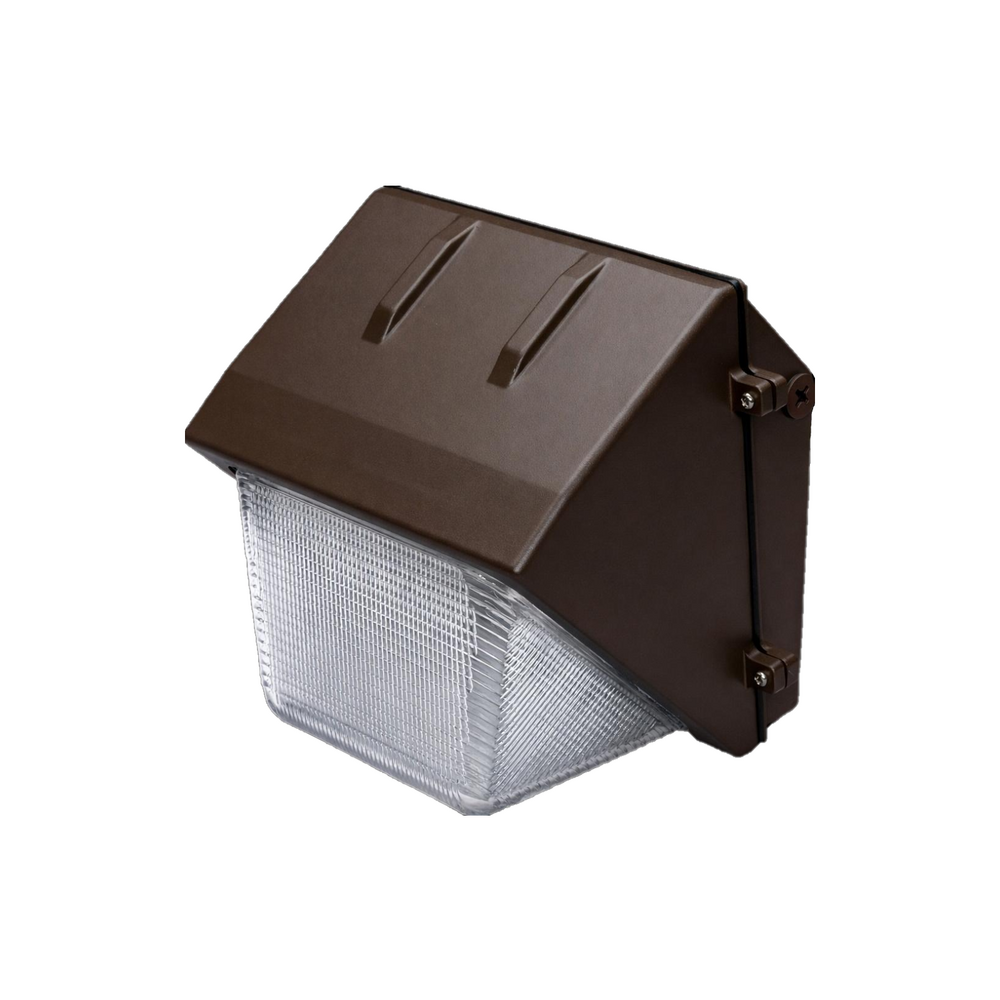

Wall Pack 30/20/10W 3CS Bronze 120-277VAC

  • Product Code:

    W1LED-WS-3CS

  • Stock Code:

    0582-4230
View Specifications

Product Details

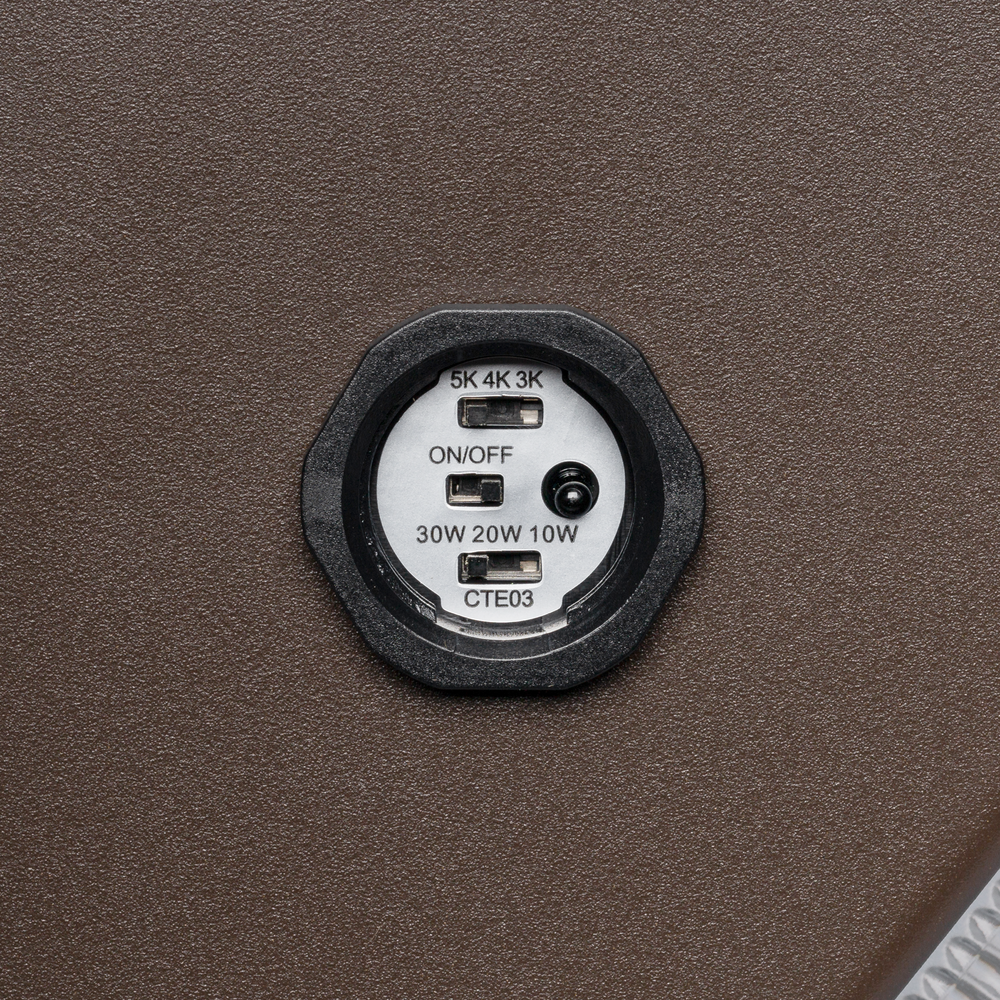

The Tamlite Lighting W1LED-WS-3CS LED Wall Pack, with its adjustable wattage and brightness options, offers a customizable lighting solution for any outdoor area. This energy-efficient, easy-to-install fixture features a durable die-cast aluminum body and a range of color temperature choices, making it ideal for enhancing security and ambiance in parking lots, walkways, and other exterior spaces. With integrated LED technology and a protective powder coat finish, it ensures long-lasting performance and resistance to the elements. Perfect for those seeking a reliable, versatile outdoor lighting option.

Product

W1LED-WS-3CS
0582-4230
The Tamlite Lighting W1LED-WS-3CS LED Wall Pack, with its adjustable wattage and brightness options, offers a customizable lighting solution for any outdoor area. This energy-efficient, easy-to-install fixture features a durable die-cast aluminum body and a range of color temperature choices, making it ideal for enhancing security and ambiance in parking lots, walkways, and other exterior spaces. With integrated LED technology and a protective powder coat finish, it ensures long-lasting performance and resistance to the elements. Perfect for those seeking a reliable, versatile outdoor lighting option.

Specifications

Ballast Type LED Driver
CRI 70
Dimming 0-10V
Efficacy 129 lm/W
Finish Color Bronze
Finish Type Powder Coat
Housing Material Aluminum
Lens Material Tempered Glass
Lumen Output 1800/3200/4200 lm
Luminaire Beam Angle 120 °
Luminaire Type Wall Pack
Mounting Surface Mount
Nominal CCT 3000K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Series W1LED
Source Type LED
Wattage 30/20/10 W
Weight 6.8 lbs
Wiring Type 3-Wire (L-N-G) 2-wire(010Vdc)

Ordering

Case Length 9.75 in.
Case QTY 1
Case Weight 5.5 lbs
Case Width 10.5 in.
Master Case Height 12 in.
Master Case Length 21.25 in.
Master Case QTY 4
Master Case Weight 22 lbs
Master Case Width 21.25 in.
Package Height 10.75 in.
Package Length 9.75 in.
Package QTY 1
Package Weight 5.5 lbs
Package Width 10.5 in.
