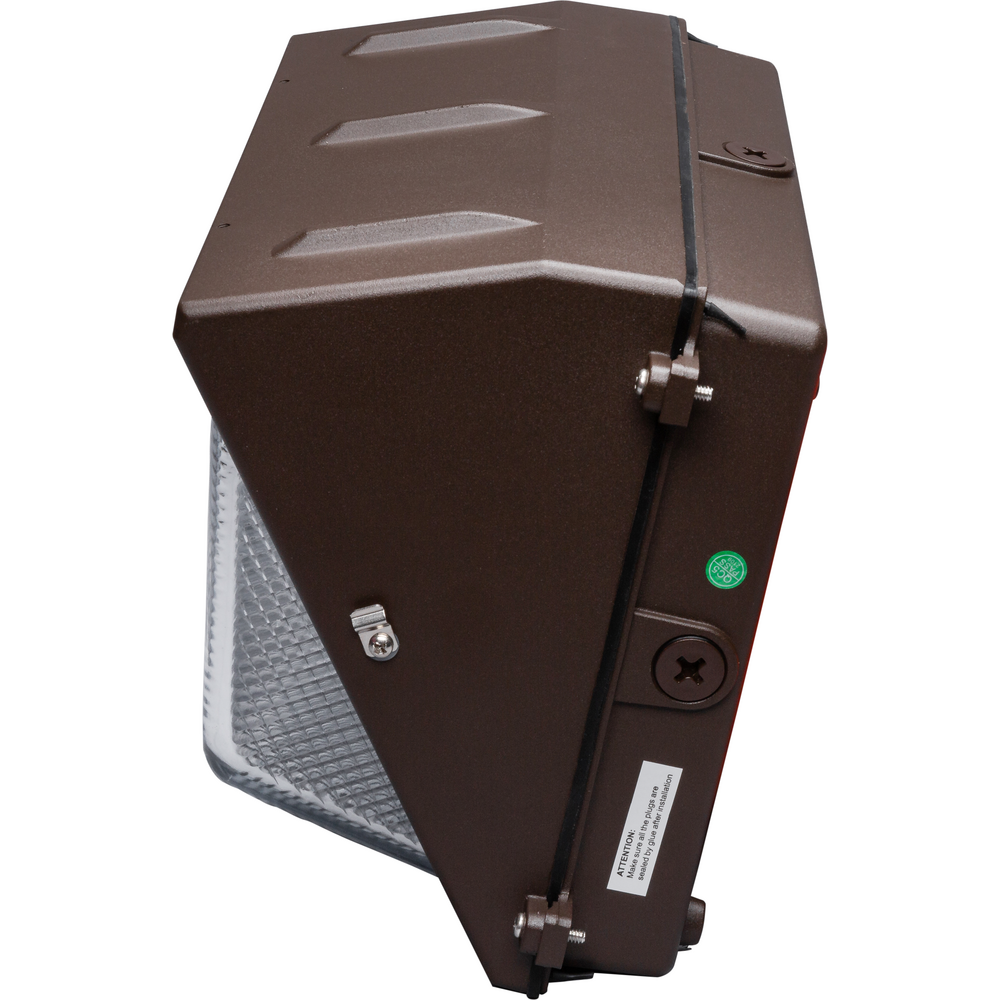

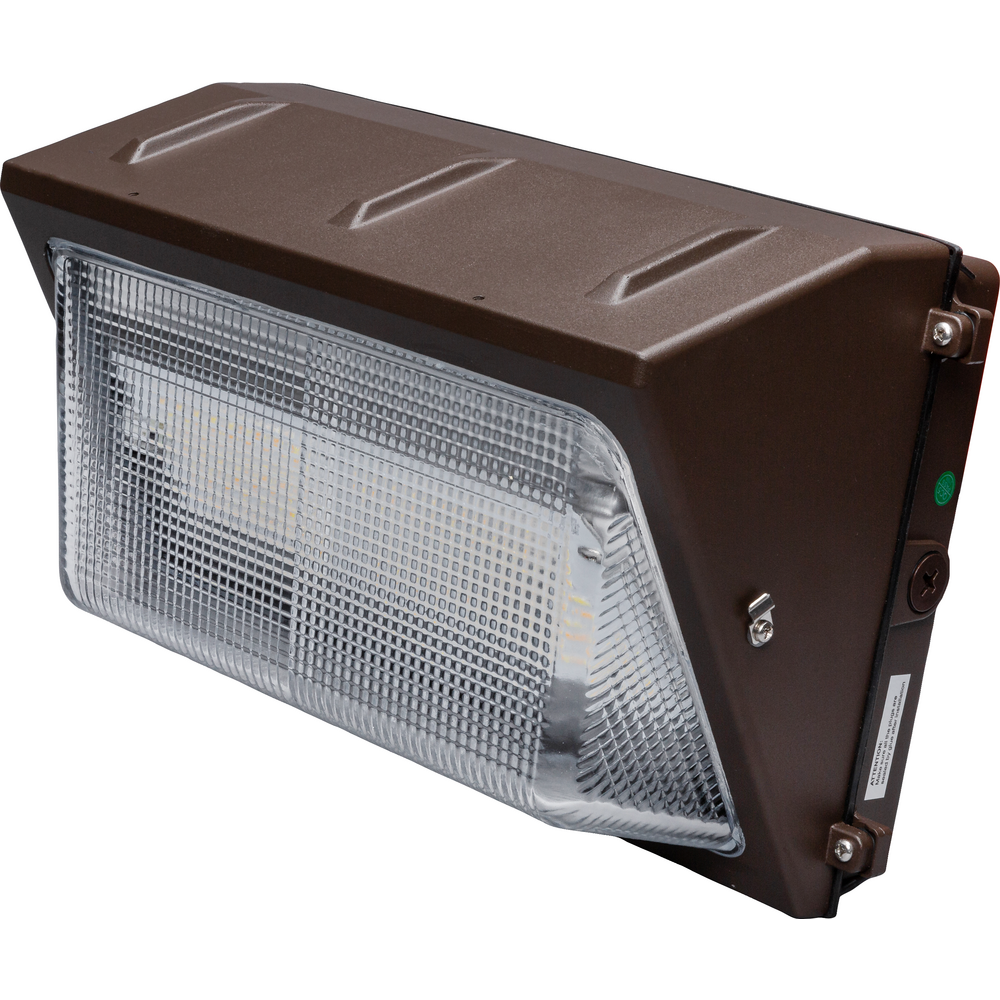

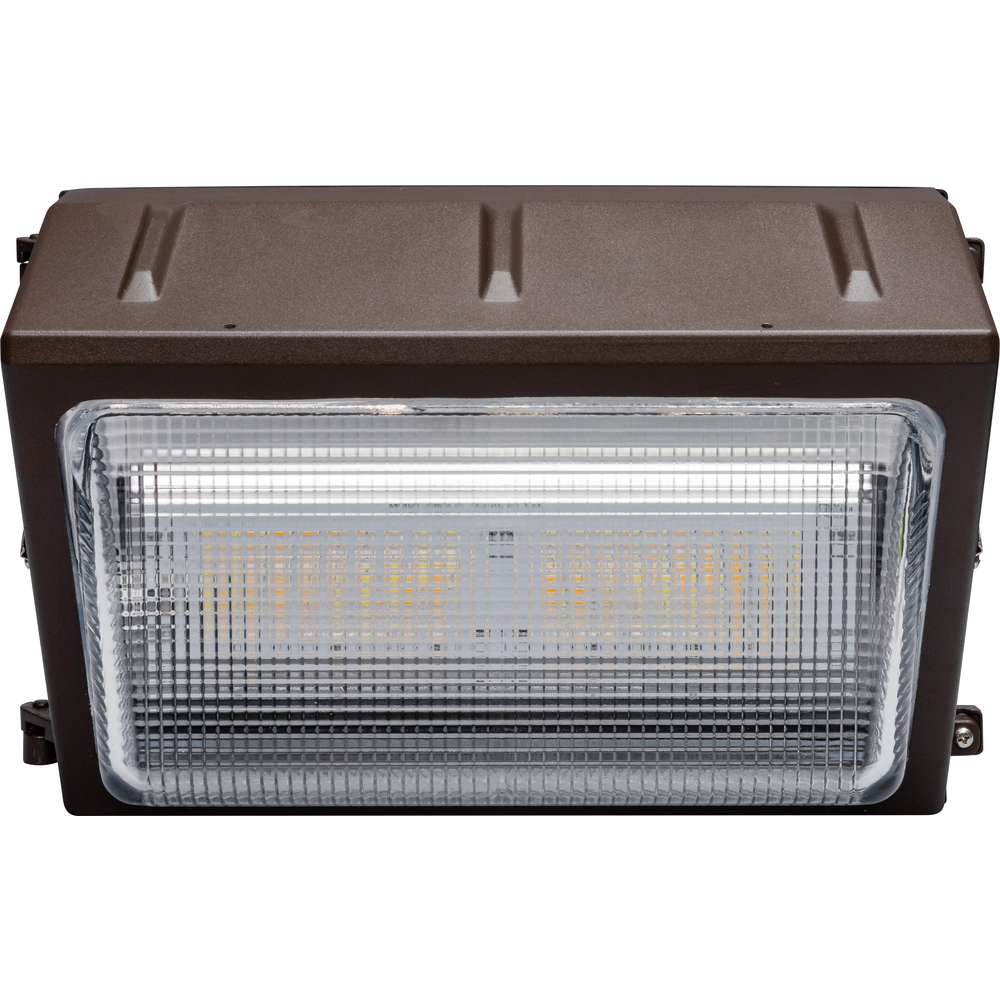

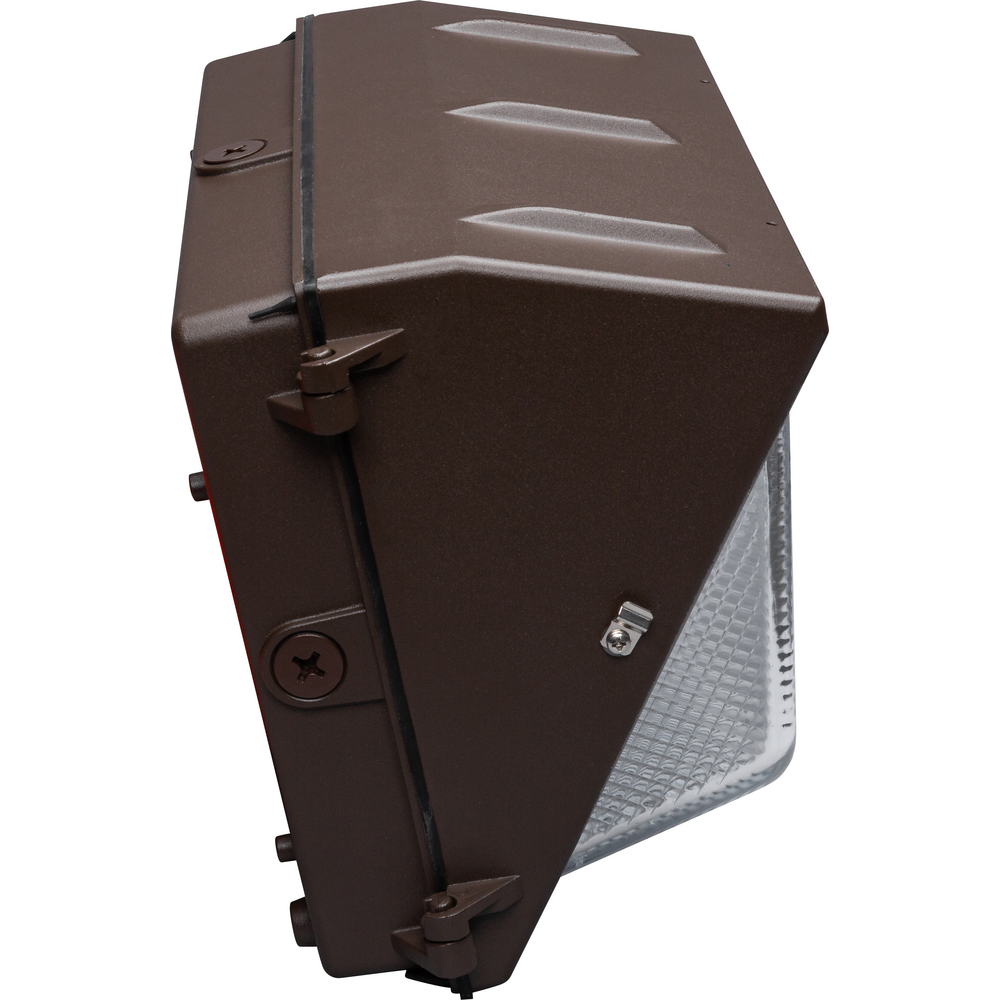

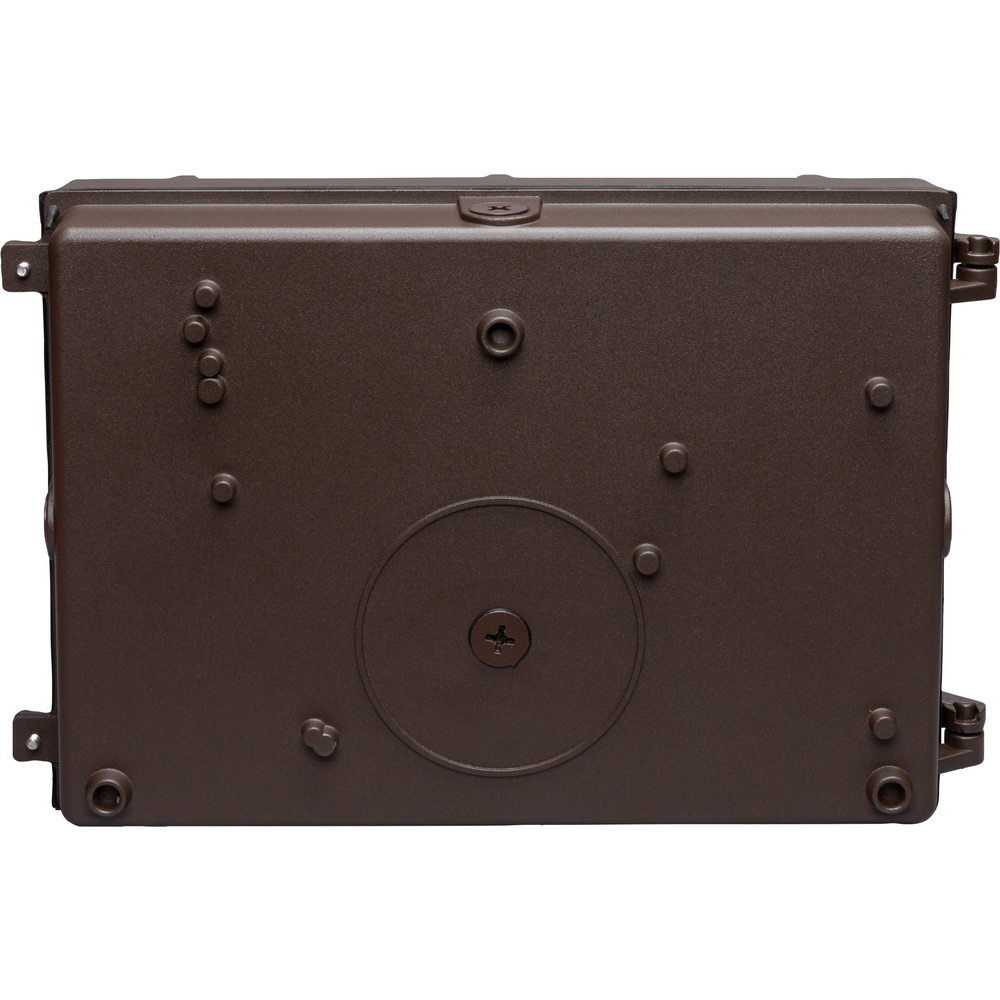

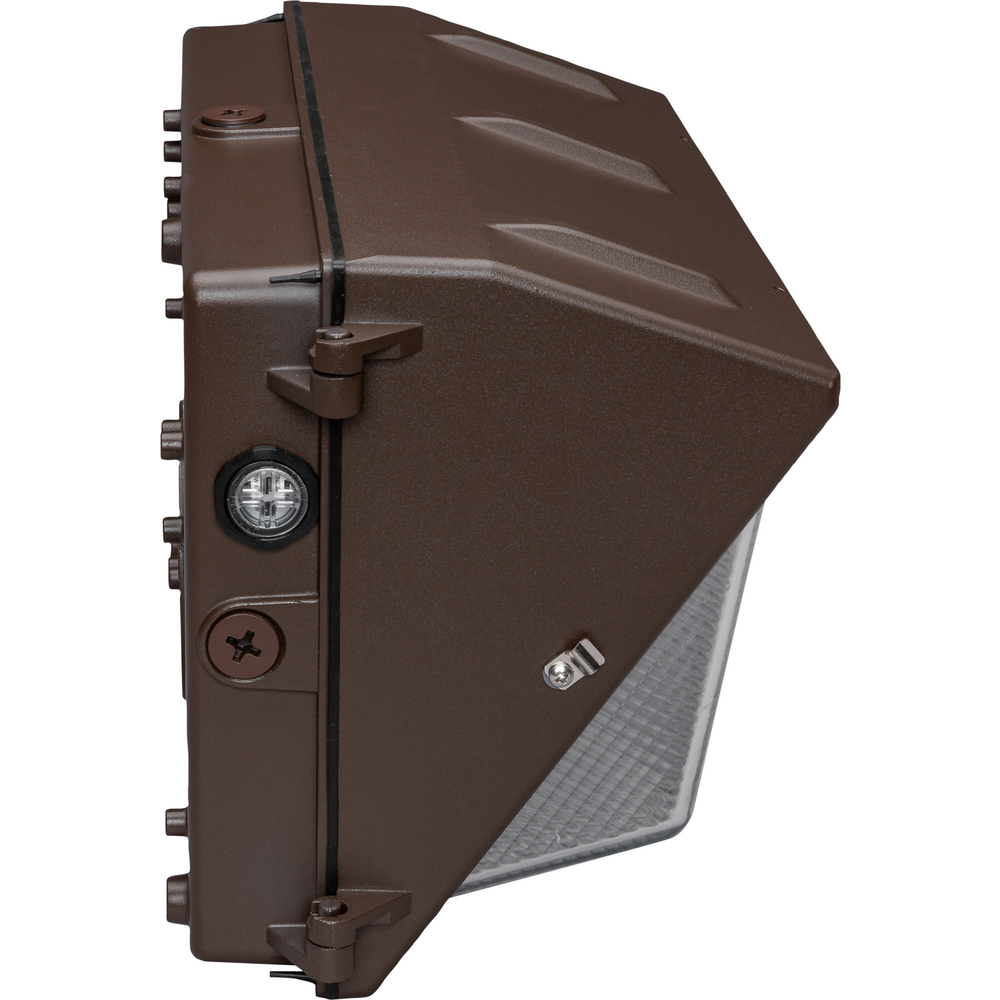

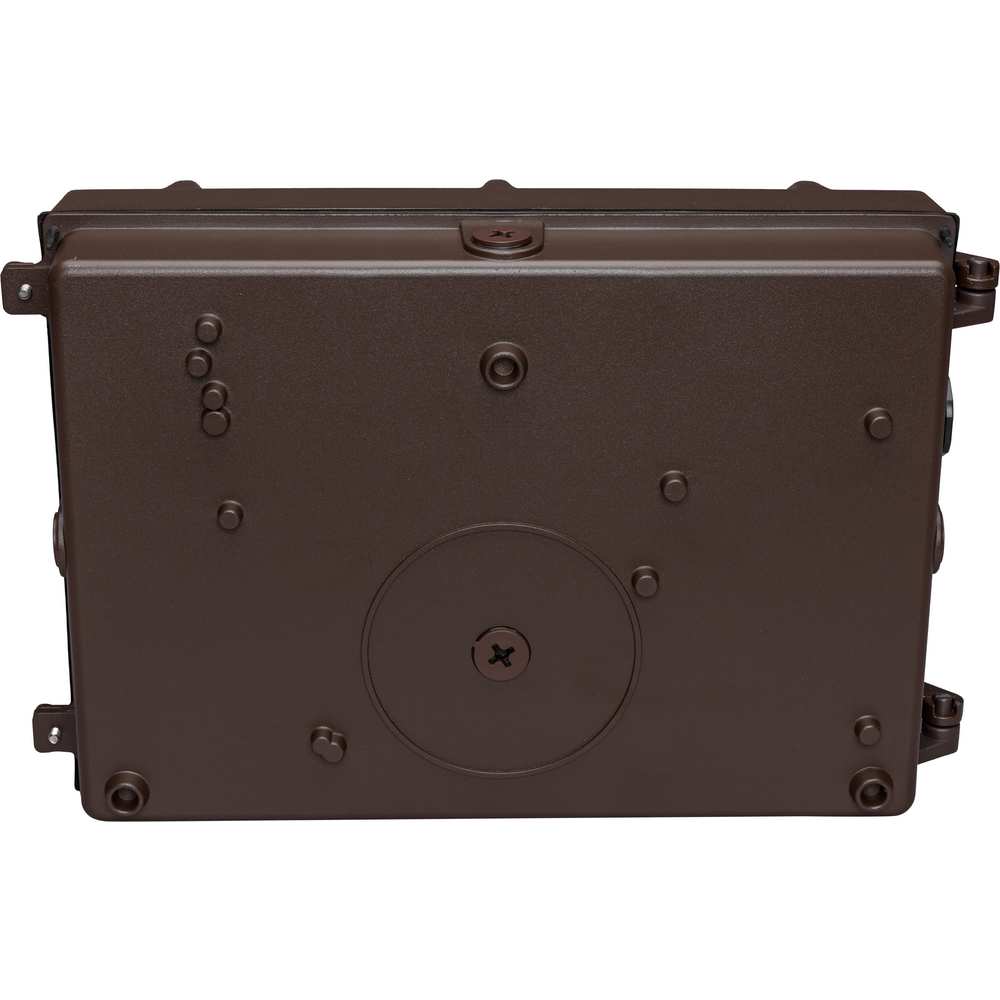

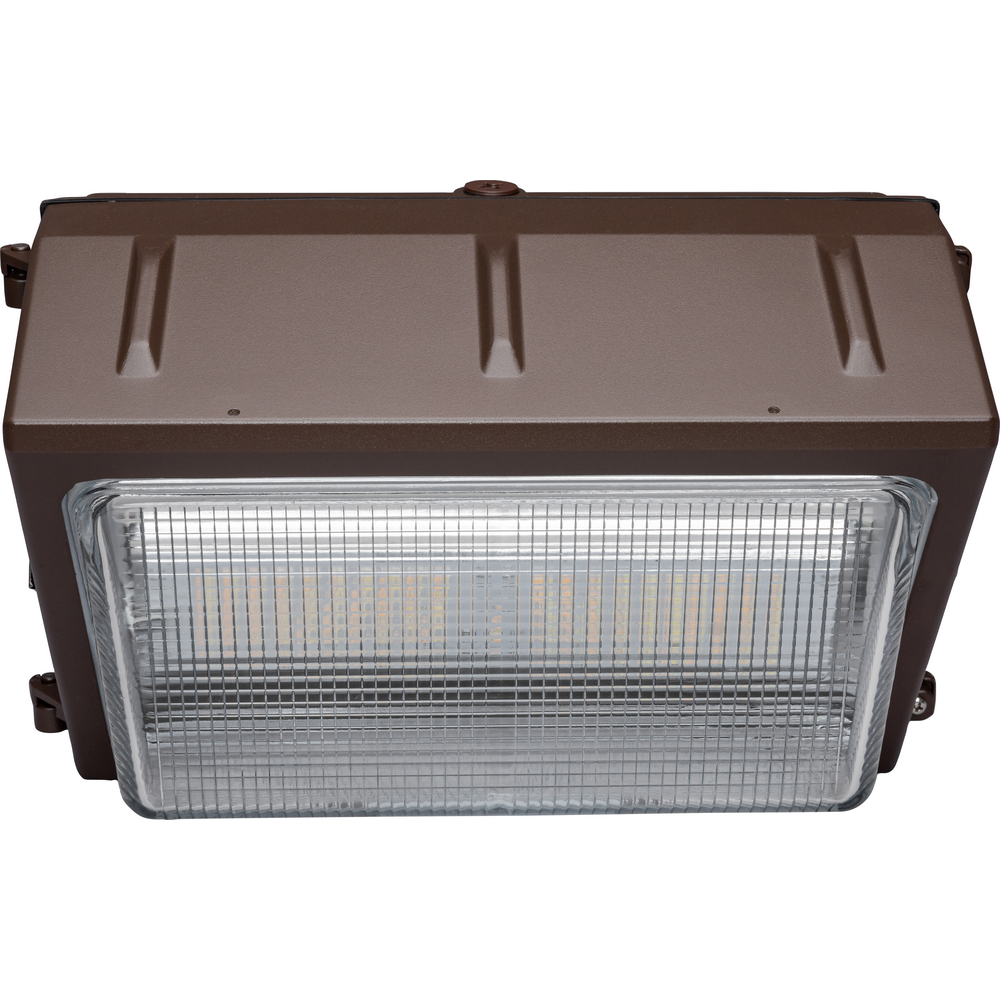

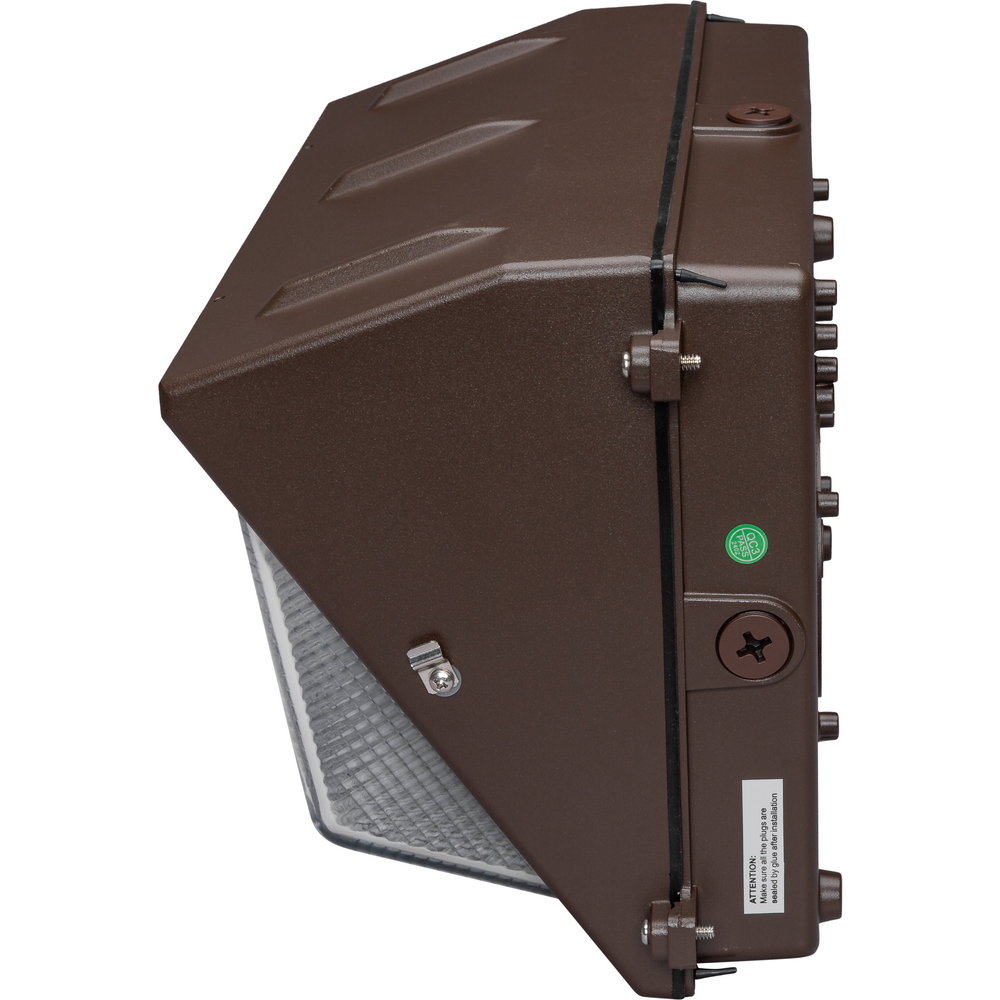

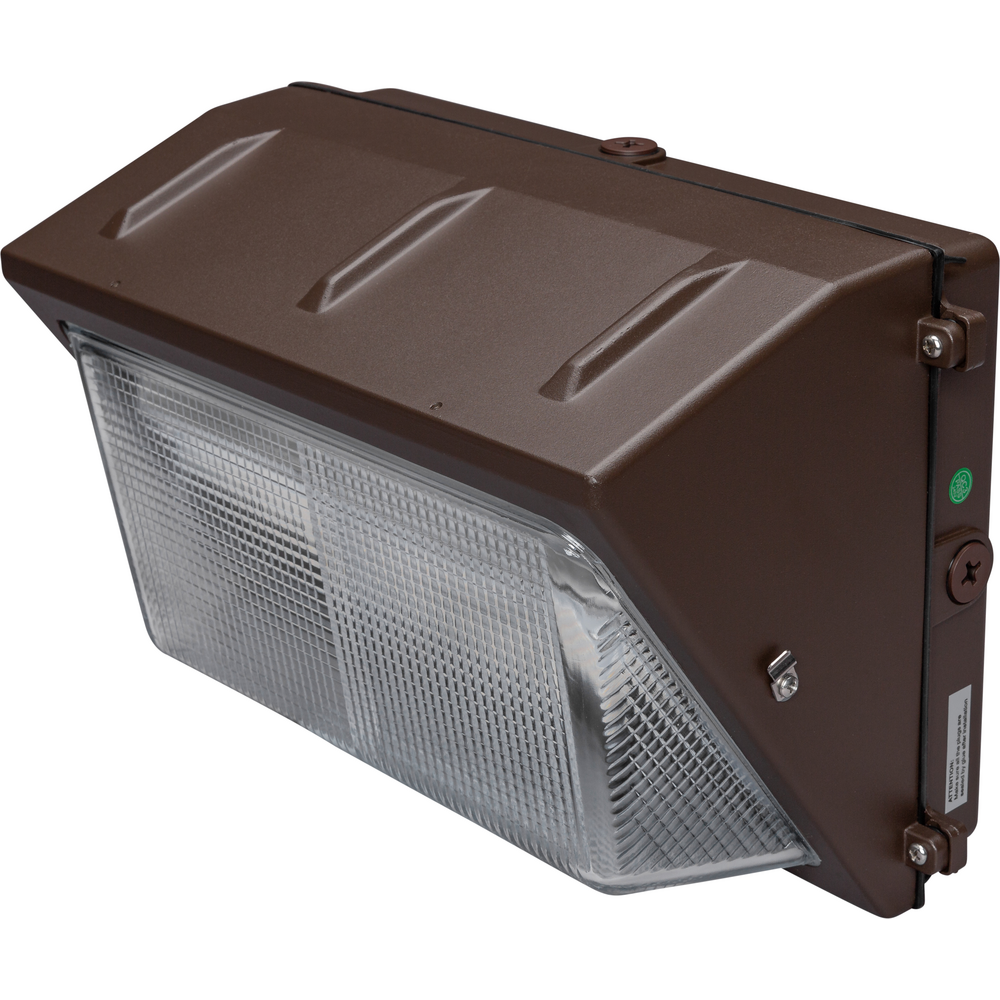

Wall Pack EM 80/60/50W 3CS Bronze 120-277VAC

  • Product Code:

    W2LED-WS-3CS-EM

  • Stock Code:

    0710-1639
View Specifications

Product Details

Experience enhanced outdoor lighting with the W2LED series wall pack, perfect for commercial properties and security
enhancements. The housing size makes the W2LED a direct upgrade for most common HID wall packs. Featuring wattage and

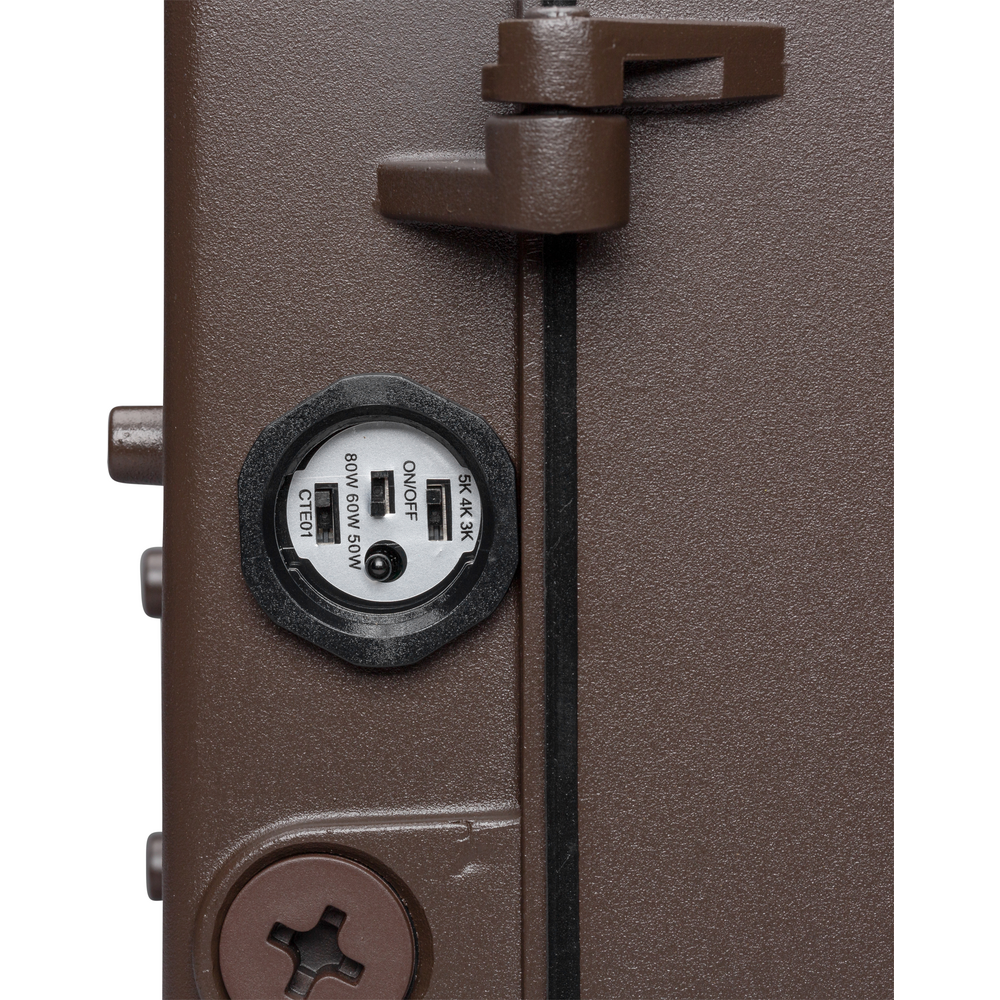

color selectable technology along with an integrated photocell, it allows easy on-site customization to meet a wide range of
lighting requirements.

Product

W2LED-WS-3CS-EM
0710-1639
Experience enhanced outdoor lighting with the W2LED series wall pack, perfect for commercial properties and security enhancements. The housing size makes the W2LED a direct upgrade for most common HID wall packs. Featuring wattage and color selectable technology along with an integrated photocell, it allows easy on-site customization to meet a wide range of lighting requirements.

Specifications

Ballast Type LED Driver
CRI 80
Dimming 0-10V
Efficacy 138 lm/W
Finish Color Bronze
Finish Type Powder Coat
Housing Material Aluminum
Lens Material Tempered Glass
Lumen Output 6900/8300/11050 lm
Luminaire Beam Angle 120 °
Luminaire Type Wall Pack
Mounting Surface Mount
Nominal CCT 3000K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Series W2LED
Source Type LED
Wattage 80/60/50 W
Weight 18.5 lbs
Wiring Type 3-Wire (L-N-G) 2-wire(010Vdc)

Ordering

Master Case Height 11.61 in.
Master Case Length 15.35 in.
Master Case QTY 1
Master Case Weight 18.5 lbs
Master Case Width 9.06 in.
