SPLWS sports lighter 500/400/300W 5000K 120-277VAC
-
SPLWS5K 80 U YK BK
Product Code:
-
0583-5960
Stock Code:
Product Details

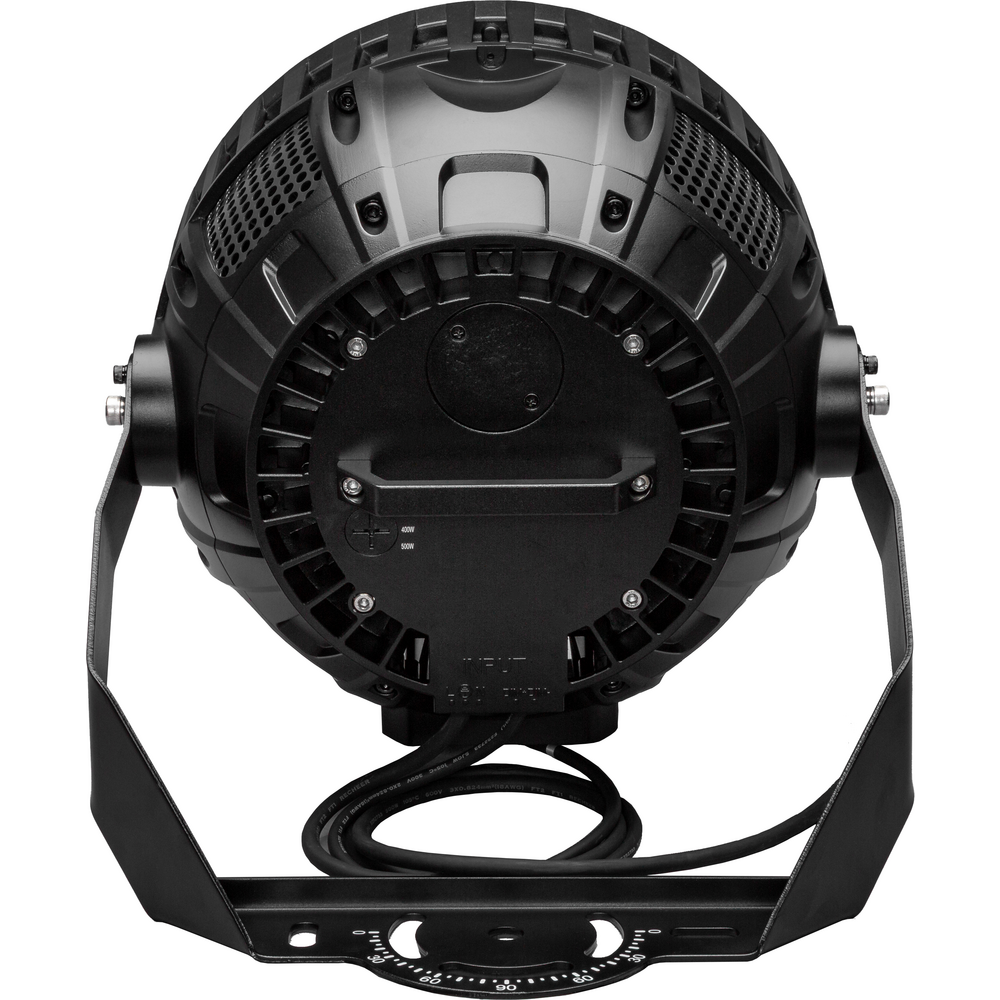

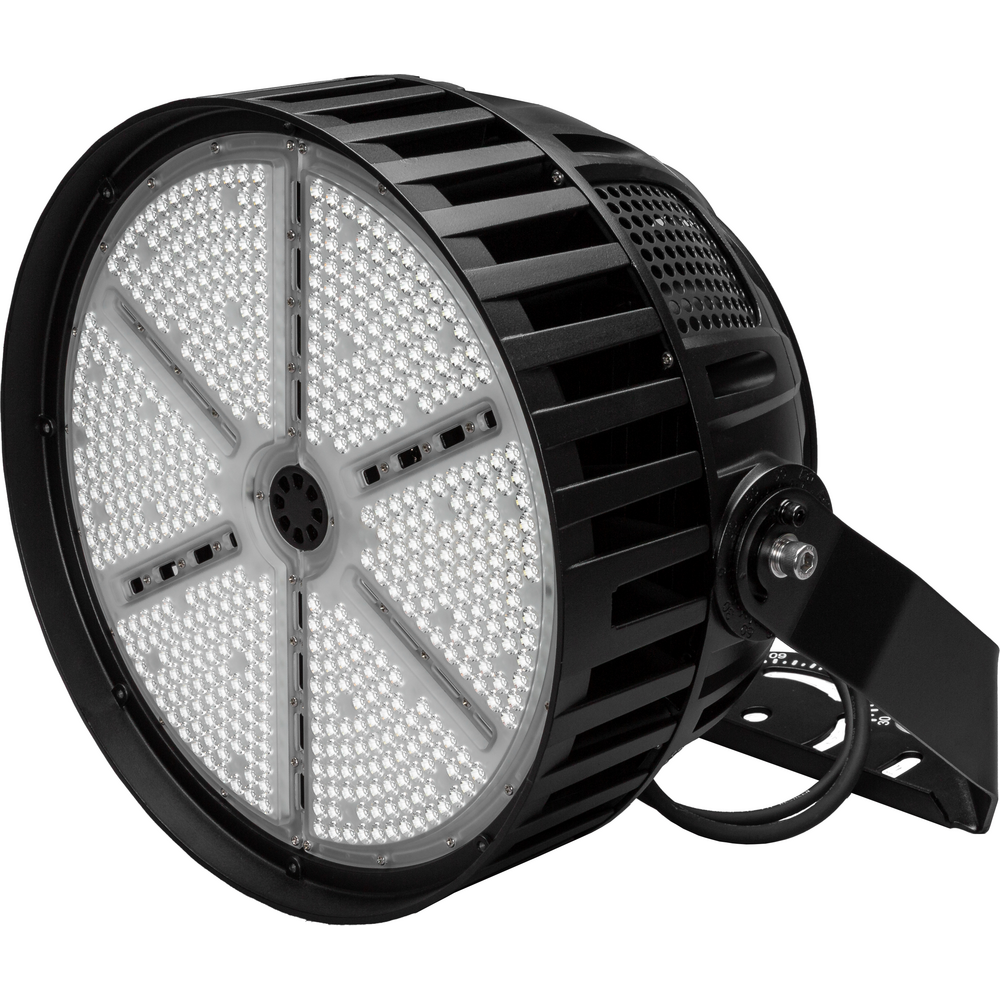

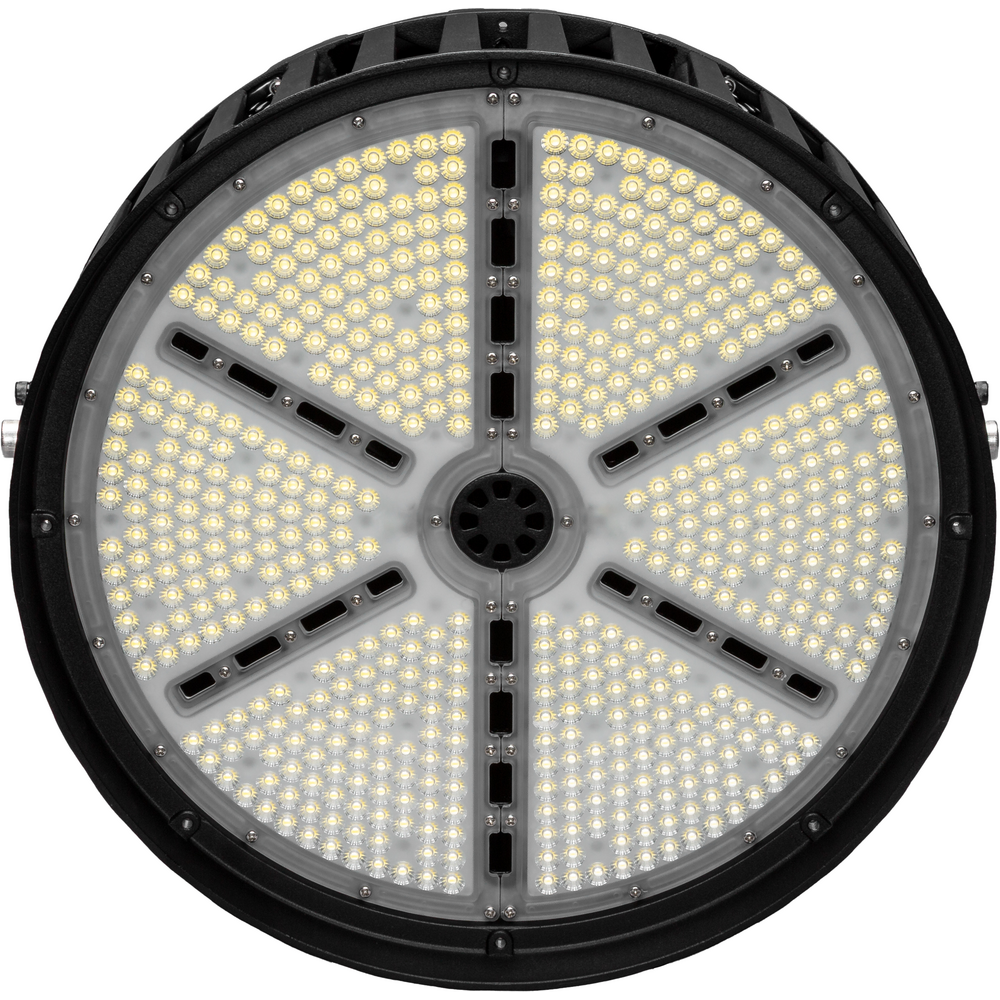

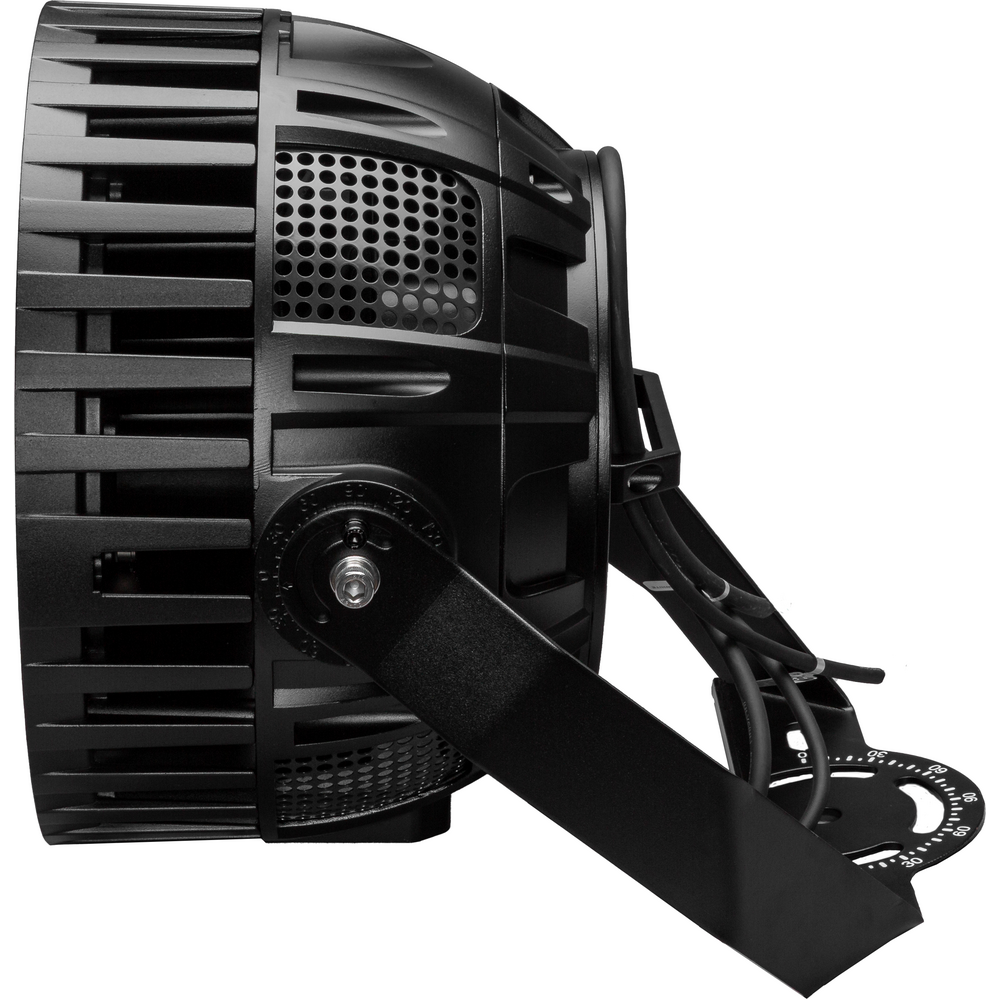

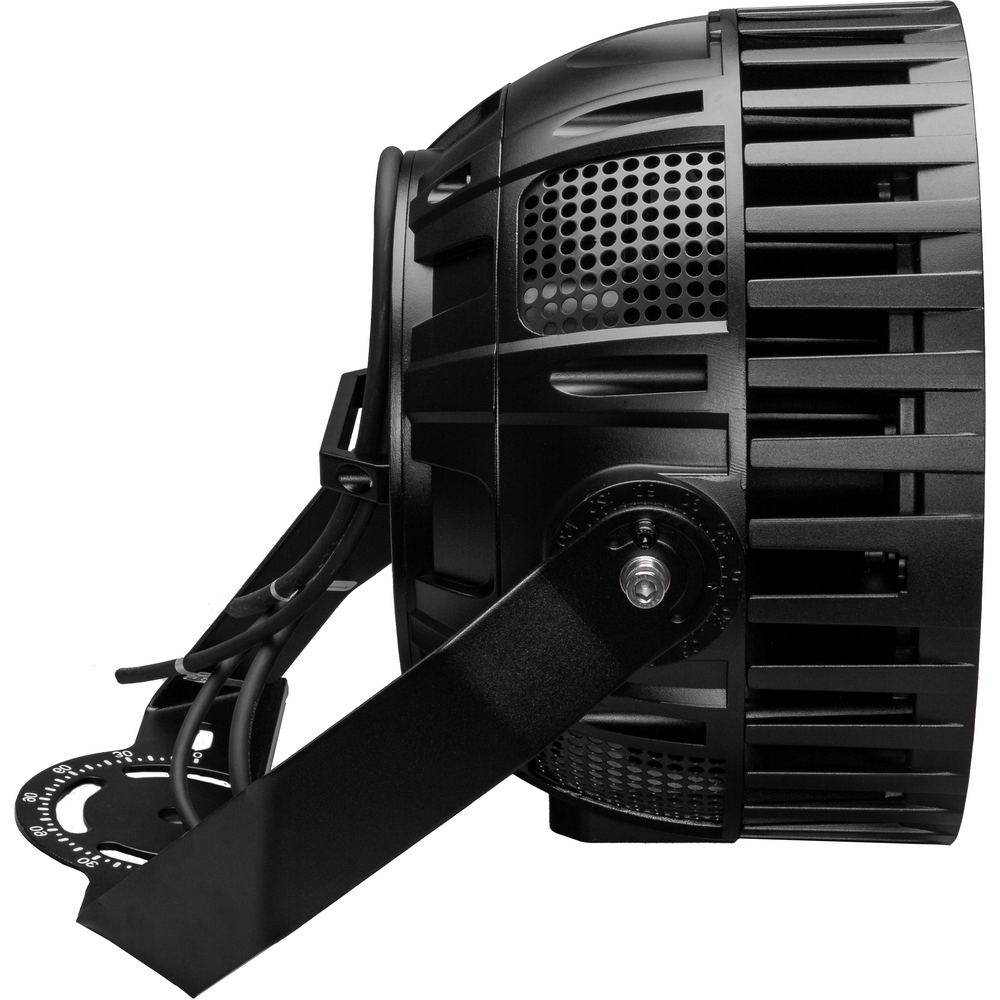

The SPLWS is a wattage selectable LED sports light that is designed to provide even lighting over outdoor areas and sports courts.
Product
SPLWS5K 80 U YK BK
0583-5960
The SPLWS is a wattage selectable LED sports light that is designed to provide even lighting over outdoor areas and sports courts.
Specifications
| Ballast Type | LED Driver |
|---|---|
| CRI | 70 |
| Dimming | 0-10V |
| EPA | 1.6 ft² |
| Efficacy | 130 lm/W |
| Finish Color | Black |
| Finish Type | Powder Coat |
| Housing Material | Aluminum |
| Lens Material | Polycarbonate |
| Lumen Output | 39000/52000/65000 lm |
| Luminaire Beam Angle | 80 ° |
| Luminaire Type | Area Light |
| Mounting | Yoke Mount |
| Nominal CCT | 5000K |
| Product Type | Product |
| Rated Input Voltage Range | 120-277 VAC |
| Series | SPLWS |
| Source Type | LED |
| Wattage | 500/400/300 W |
| Weight | 35 lbs |
| Wiring Type | 3-Wire (L-N-G) 2-wire(010Vdc) |
Ordering
| Master Case Height | 19 in. |
| Master Case Length | 20.5 in. |
| Master Case QTY | 1 |
| Master Case Weight | 32.5 lbs |
| Master Case Width | 19 in. |
| Pallet Height | 48 in. |
| Pallet Length | 48 in. |
| Pallet QTY | 8 |
| Pallet Weight | 296 lbs |
| Pallet Width | 40 in. |
