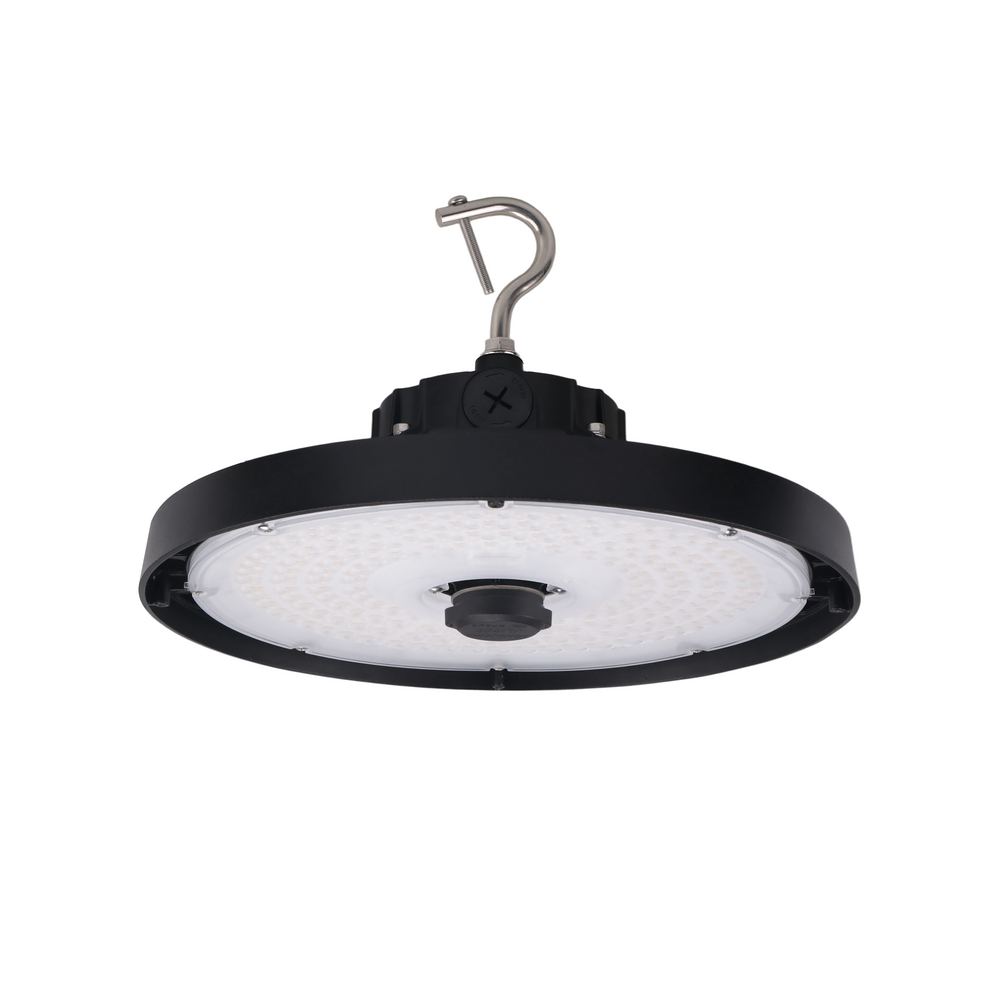

UFO Round Highbay 150W – Color, Wattage and Optics Selectable – 35K/4K/5K

  • Product Code:

    UFO-150WS-3CS-SO
  • Stock Code:

    0733-4751

Product Details

The UFO Series is an LED high-bay solution designed for large open spaces such as warehouses, factories, hangars, gyms, and warehouse-style retail environments. The series features a Z10 sensor receptacle compatible with 4-pin sensors and offers selectable color temperature, wattage, and optical distributions.

Construction
A full aluminum housing provides superior heat transmission and a durable unibody design.

Optics
Optics Selectable feature comes with the unit that includes 60°, 80° and 100°.

Dimming
This product features 0-10v dimming and utilized a Z10 sensor receptacle for optional motion control (Sold Separately).

Installation

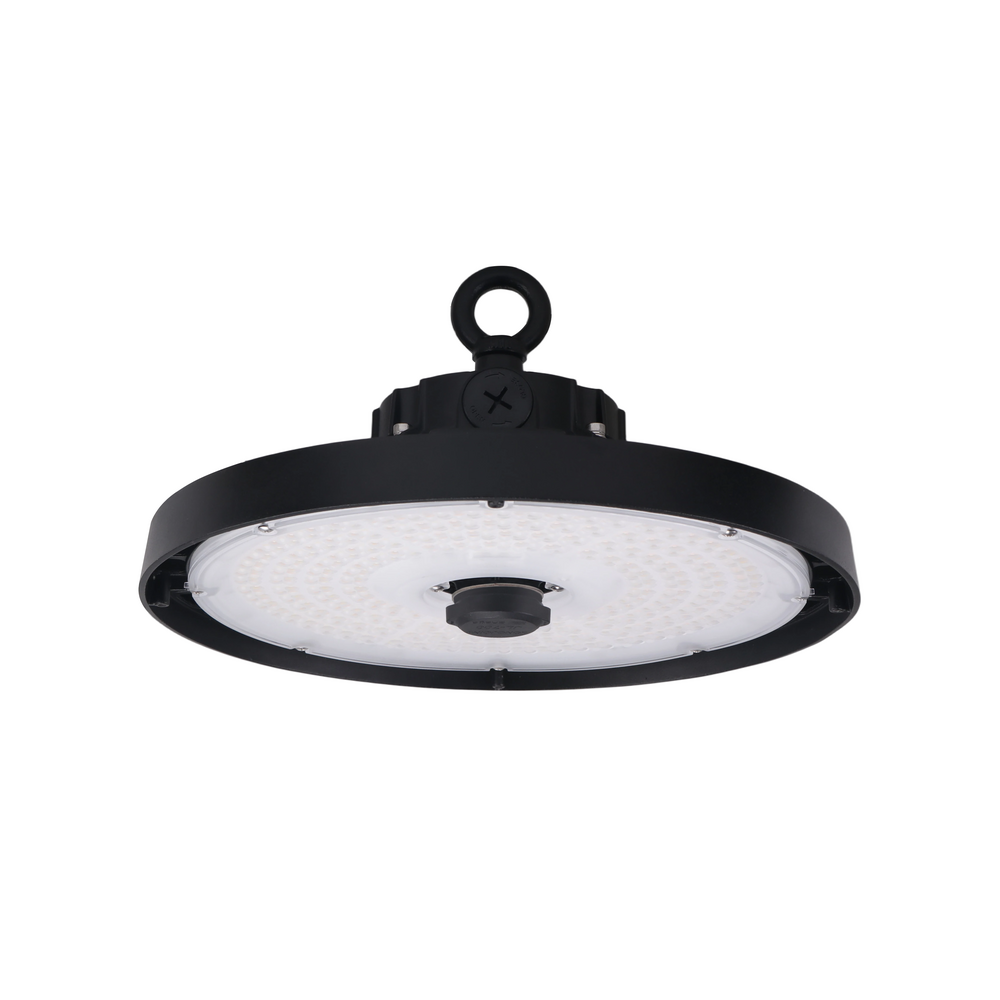

Can be installed using supplied eye ring. Threaded mounts also available.

Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory at 25°C. Specifications subject to change without notice.

Product

UFO-150WS-3CS-SO
0733-4751
The UFO Series is an LED high-bay solution designed for large open spaces such as warehouses, factories, hangars, gyms, and warehouse-style retail environments. The series features a Z10 sensor receptacle compatible with 4-pin sensors and offers selectable color temperature, wattage, and optical distributions. Construction A full aluminum housing provides superior heat transmission and a durable unibody design. Optics Optics Selectable feature comes with the unit that includes 60°, 80° and 100°. Dimming This product features 0-10v dimming and utilized a Z10 sensor receptacle for optional motion control (Sold Separately). Installation Can be installed using supplied eye ring. Threaded mounts also available. Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory at 25°C. Specifications subject to change without notice.

Specifications

CRI 80
Dimming 0-10V
Efficacy 155 lm/W
Finish Color White
Housing Material Die-Cast Aluminum
Lens Material PMMA
Lumen Output 22300 lm
Mounting Hanging Mounting
Nominal CCT 3500K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Weight 5.06 lbs

Ordering

Case Height 6 in.
Case Length 11.81 in.
Case QTY 1
Case Weight 5.06 lbs
Case Width 11.81 in.
Master Case Height 6.5 in.
Master Case QTY 1
Master Case Volume CUFT 0.021
Master Case Weight 7.7 lbs
Master Case Width 14.17 in.
