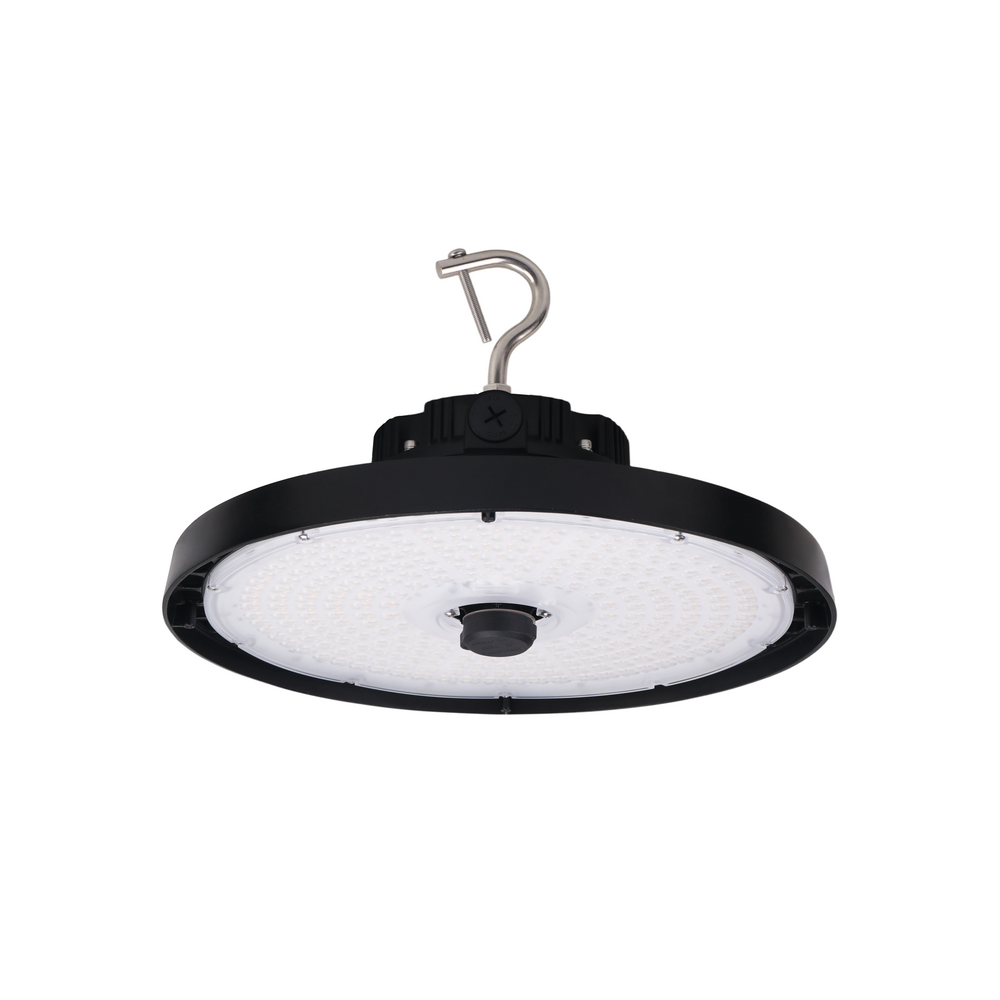

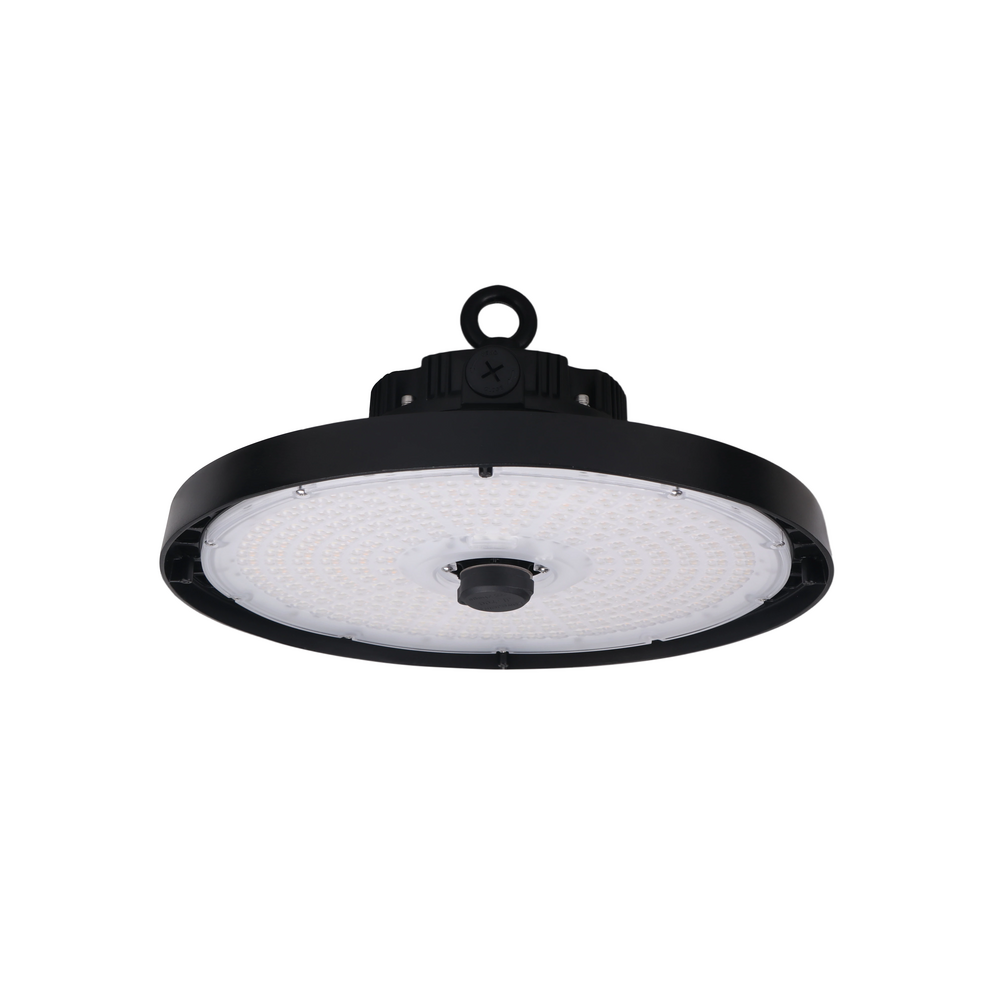

UFO Round Highbay – 240W – Color, Wattage and Optics Selectable – 35K/4K/5K

  • Product Code:

    UFO-240WS-3CS-SO
  • Stock Code:

    0733-4754

Product Details

The UFO Series is an LED high-bay solution designed for large open spaces such as warehouses, factories, hangars, gyms, and warehouse-style retail environments. The series features a Z10 sensor receptacle compatible with 4-pin sensors and offers selectable color temperature, wattage, and optical distributions.

Construction

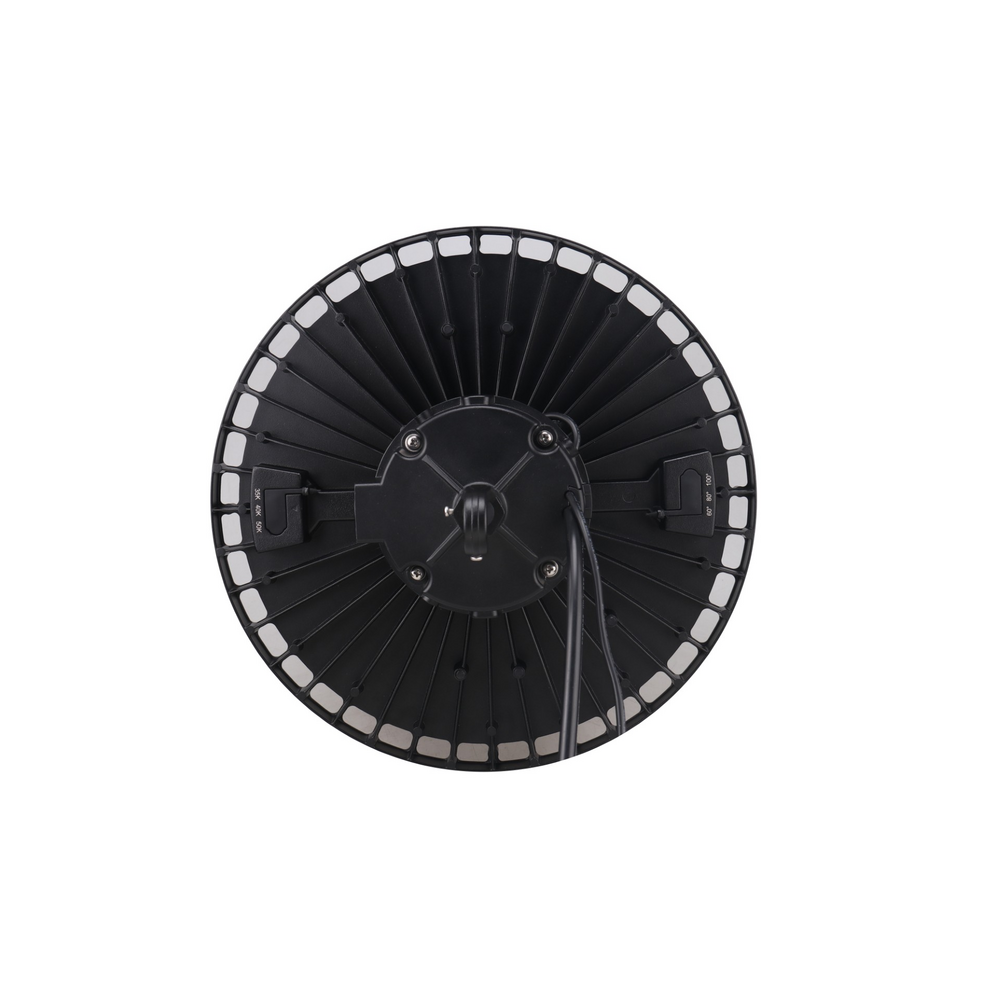

A full aluminum housing provides superior heat transmission and a durable unibody design.

Optics
Optics Selectable feature comes with the unit that includes 60°, 80° and 100°.

Dimming
This product features 0-10v dimming and utilized a Z10 sensor receptacle for optional motion control (Sold Separately).

Installation
Can be installed using supplied eye ring. Threaded mounts also available.

Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory at 25°C. Specifications subject to change without notice.

Product

UFO-240WS-3CS-SO
0733-4754
The UFO Series is an LED high-bay solution designed for large open spaces such as warehouses, factories, hangars, gyms, and warehouse-style retail environments. The series features a Z10 sensor receptacle compatible with 4-pin sensors and offers selectable color temperature, wattage, and optical distributions. Construction A full aluminum housing provides superior heat transmission and a durable unibody design. Optics Optics Selectable feature comes with the unit that includes 60°, 80° and 100°. Dimming This product features 0-10v dimming and utilized a Z10 sensor receptacle for optional motion control (Sold Separately). Installation Can be installed using supplied eye ring. Threaded mounts also available. Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory at 25°C. Specifications subject to change without notice.

Specifications

CRI 80
Dimming 0-10V
Efficacy 157 lm/W
Finish Color Black
Housing Material Die-Cast Aluminum
Lens Material PMMA
Lumen Output 35800 lm
Mounting Hanging Mount
Nominal CCT 3500K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Weight 7.04 lbs

Ordering

Master Case Height 7.28 in.
Master Case Length 16.54 in.
Master Case QTY 1
Master Case Volume CUFT 0.033
Master Case Weight 10.34
Master Case Width 16.54 in.
