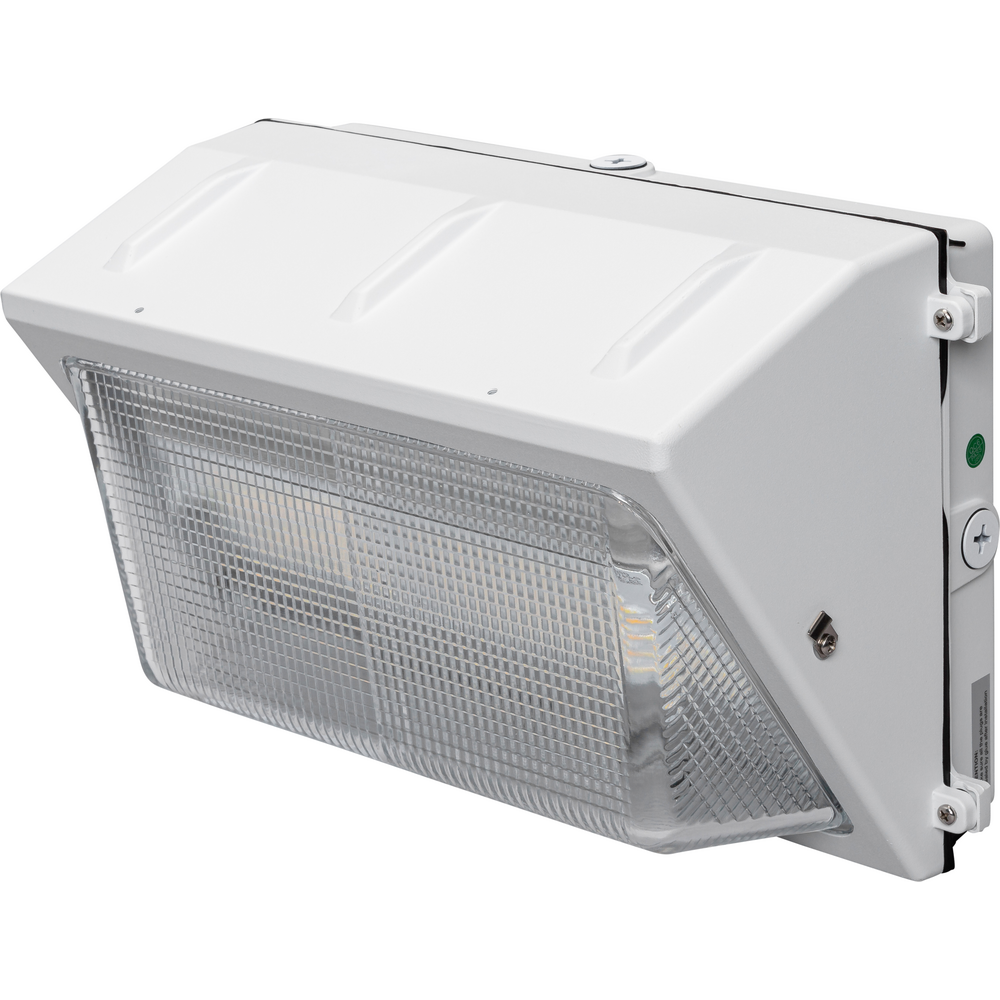

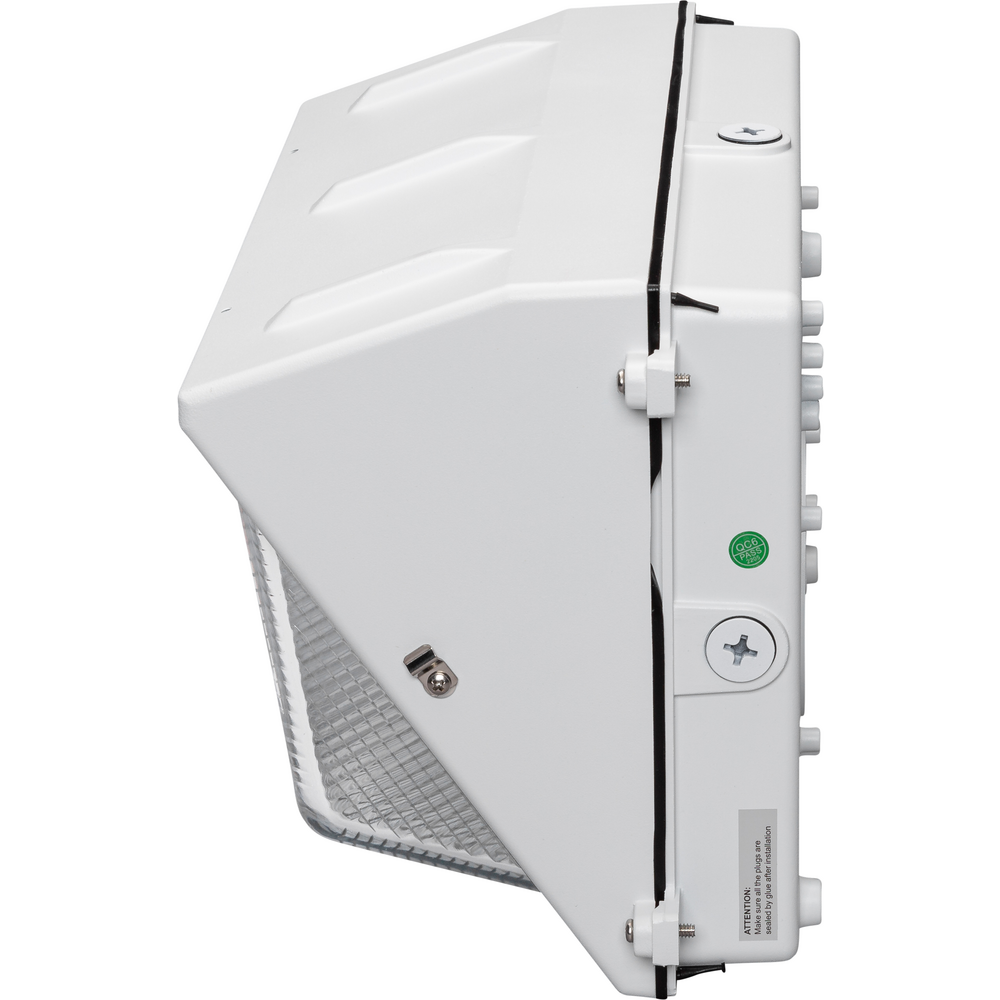

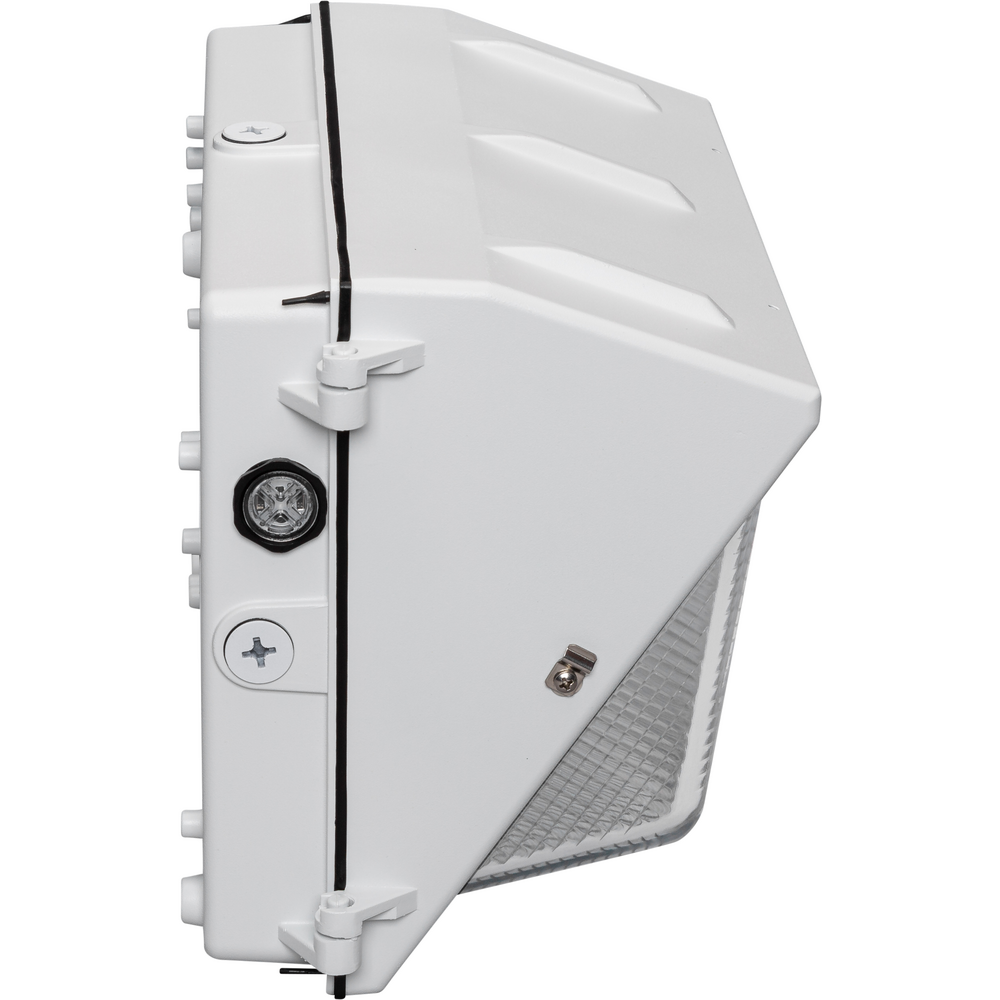

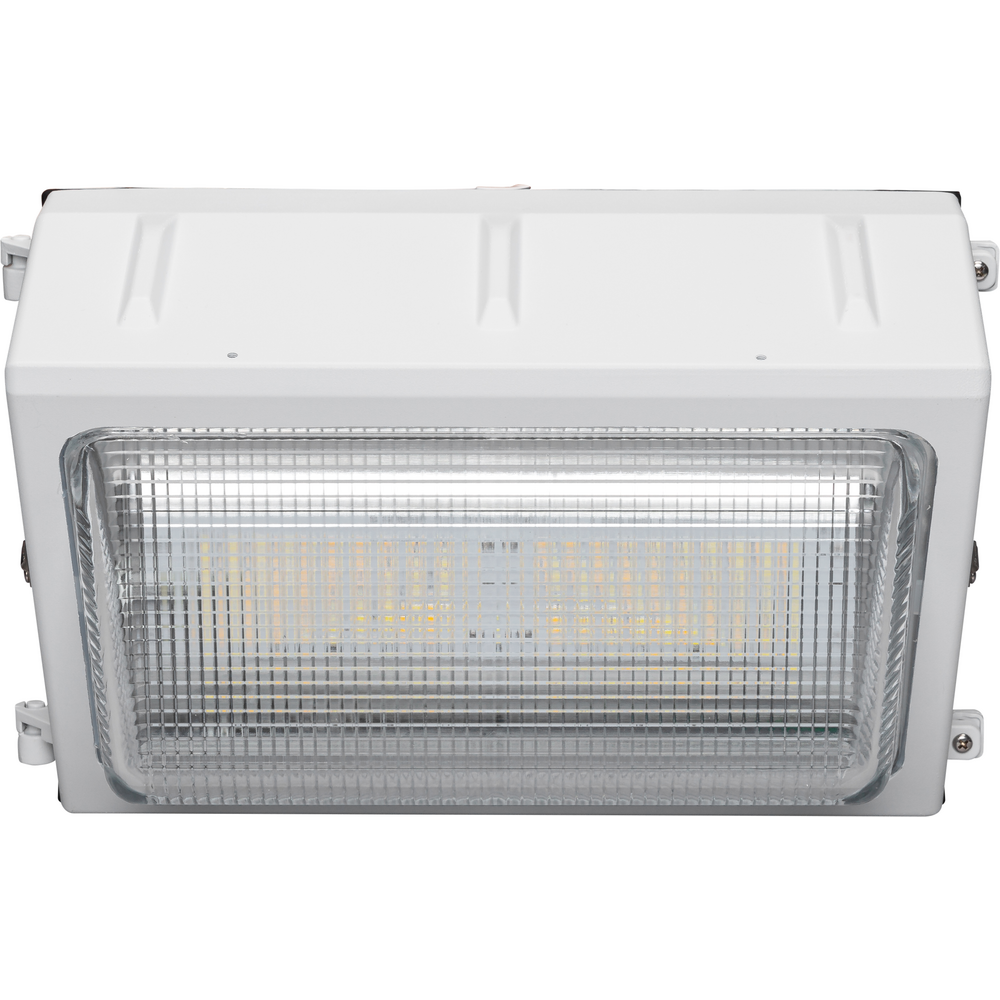

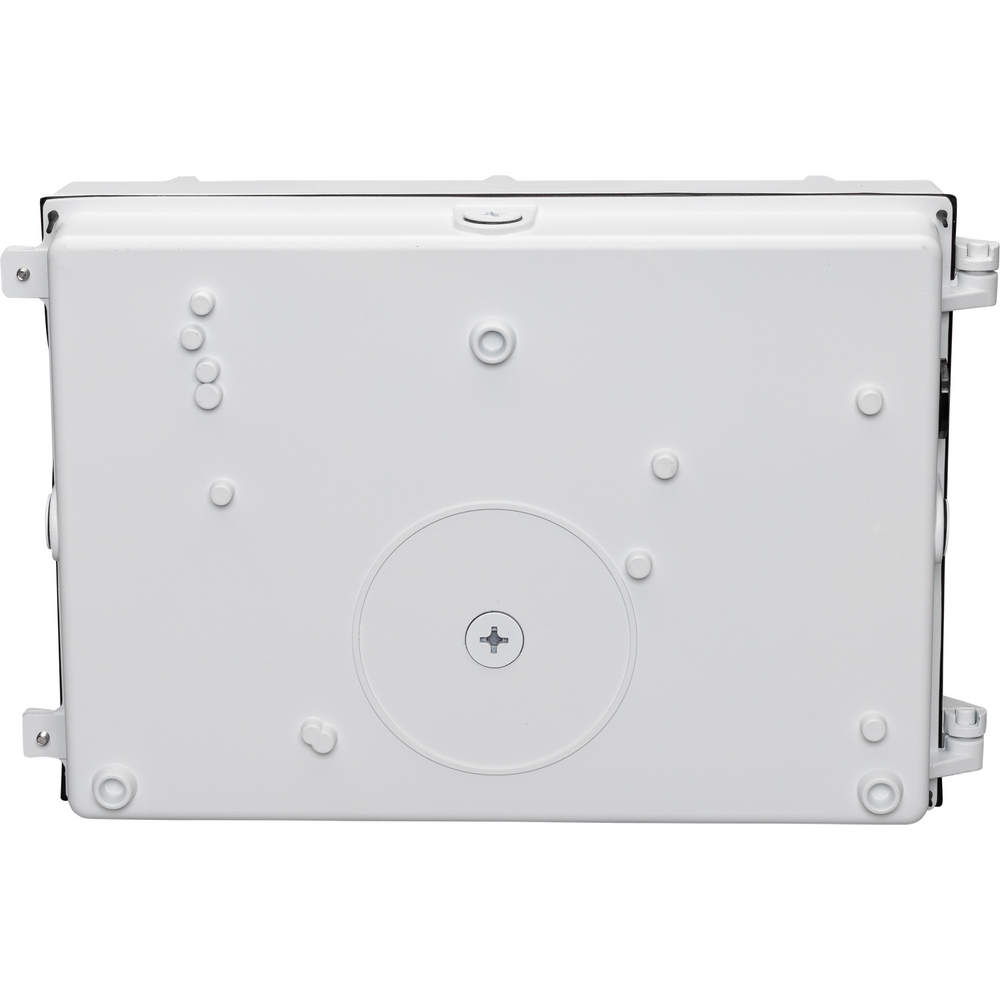

Wall Pack 80/60/50W 3CS White 120-277VAC

  • Product Code:

    W2LED-WS-3CS-WH

  • Stock Code:

    0545-2164
View Specifications

Product Details

Experience enhanced outdoor lighting with the W2LED series wall pack, perfect for commercial properties and security

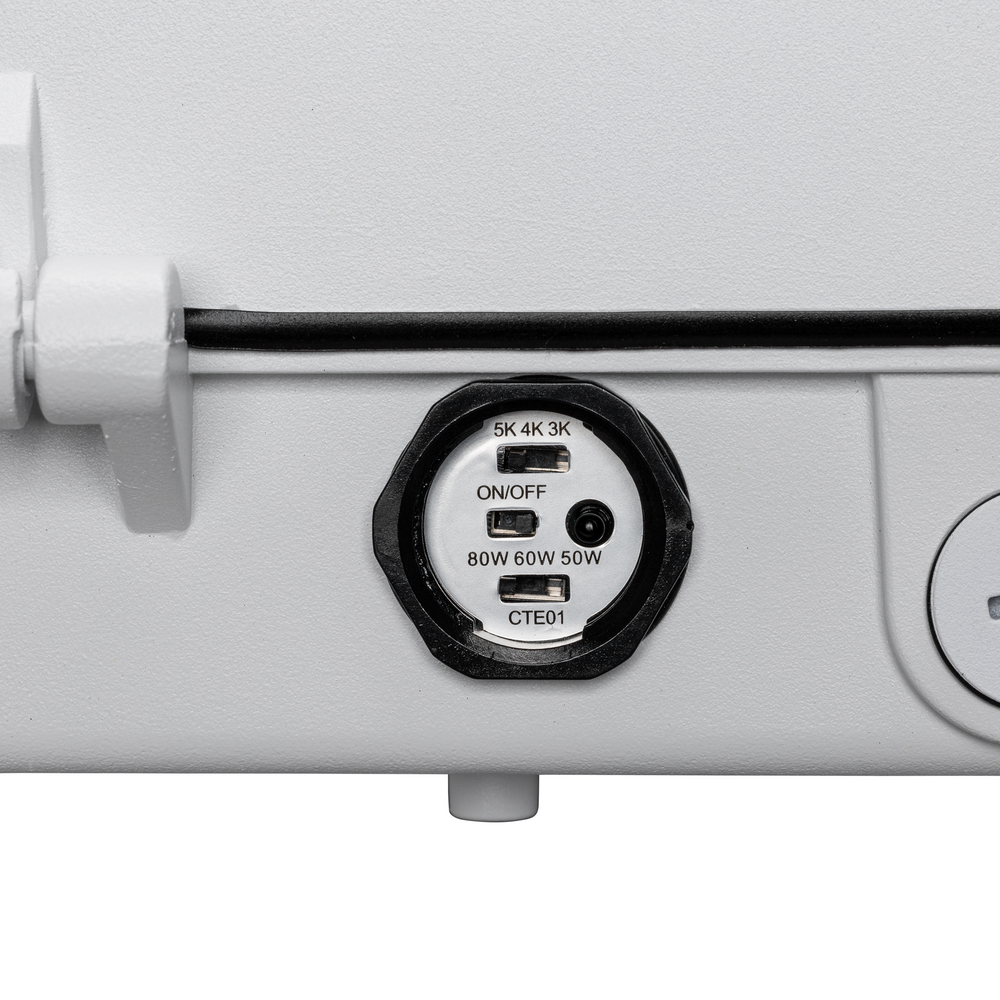

enhancements. The housing size makes the W2LED a direct upgrade for most common HID wall packs. Featuring wattage and
color selectable technology along with an integrated photocell, it allows easy on-site customization to meet a wide range of
lighting requirements.

Product

W2LED-WS-3CS-WH
0545-2164
Experience enhanced outdoor lighting with the W2LED series wall pack, perfect for commercial properties and security enhancements. The housing size makes the W2LED a direct upgrade for most common HID wall packs. Featuring wattage and color selectable technology along with an integrated photocell, it allows easy on-site customization to meet a wide range of lighting requirements.

Specifications

Ballast Type LED Driver
CRI 70
Dimming 0-10V
Efficacy 138 lm/W
Finish Color White
Finish Type Powder Coat
Housing Material Aluminum
Lens Material Tempered Glass
Lumen Output 6900/8300/11050 lm
Luminaire Beam Angle 120 °
Luminaire Type Wall Pack
Mounting Surface Mount
Nominal CCT 3000K/4000K/5000K
Product Type Product
Rated Input Voltage Range 120-277 VAC
Series W2LED
Source Type LED
Wattage 80/60/50 W
Weight 13.5 lbs
Wiring Type 3-Wire (L-N-G) 2-wire(010Vdc)

Ordering

Case Weight 9.5 lbs
Master Case Height 11.625 in.
Master Case Length 15.375 in.
Master Case QTY 1
Master Case Weight 9.5 lbs
Master Case Width 9 in.
Package QTY 1
Package Weight 9.5 lbs
