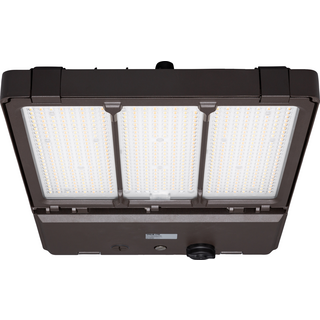

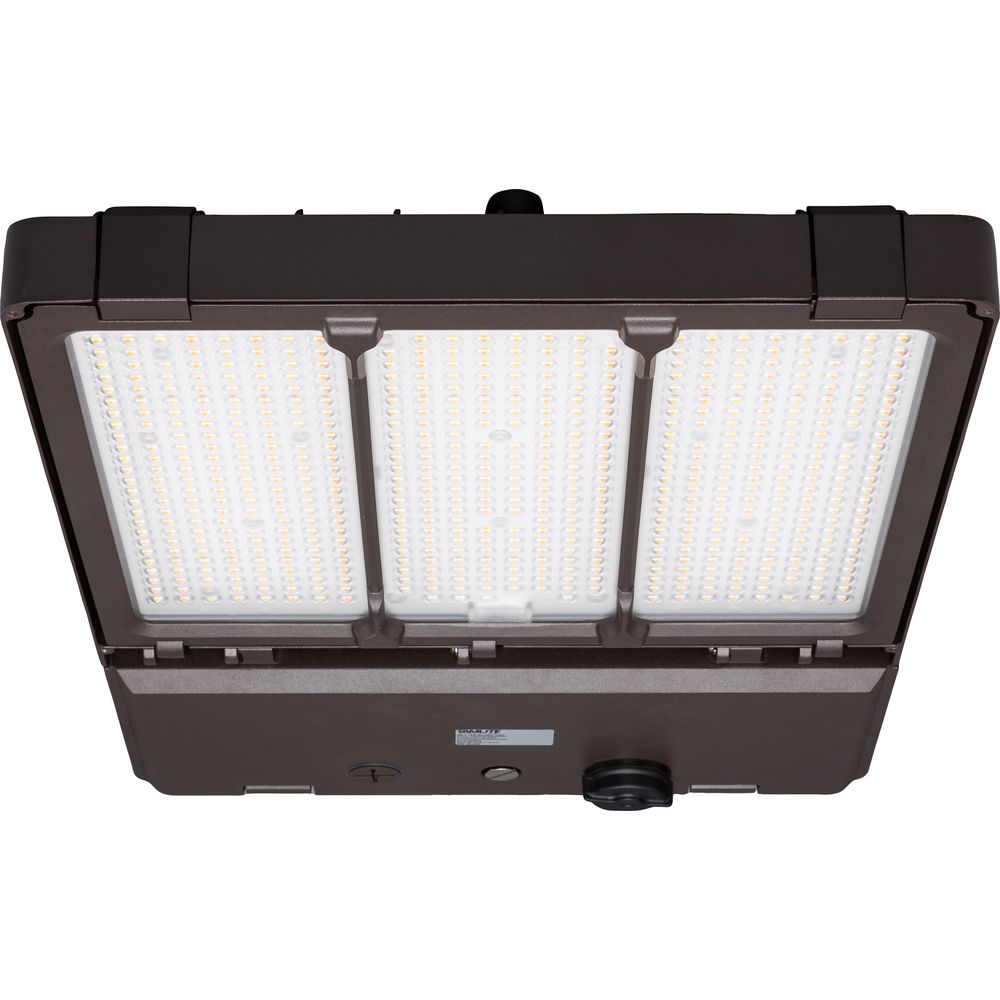

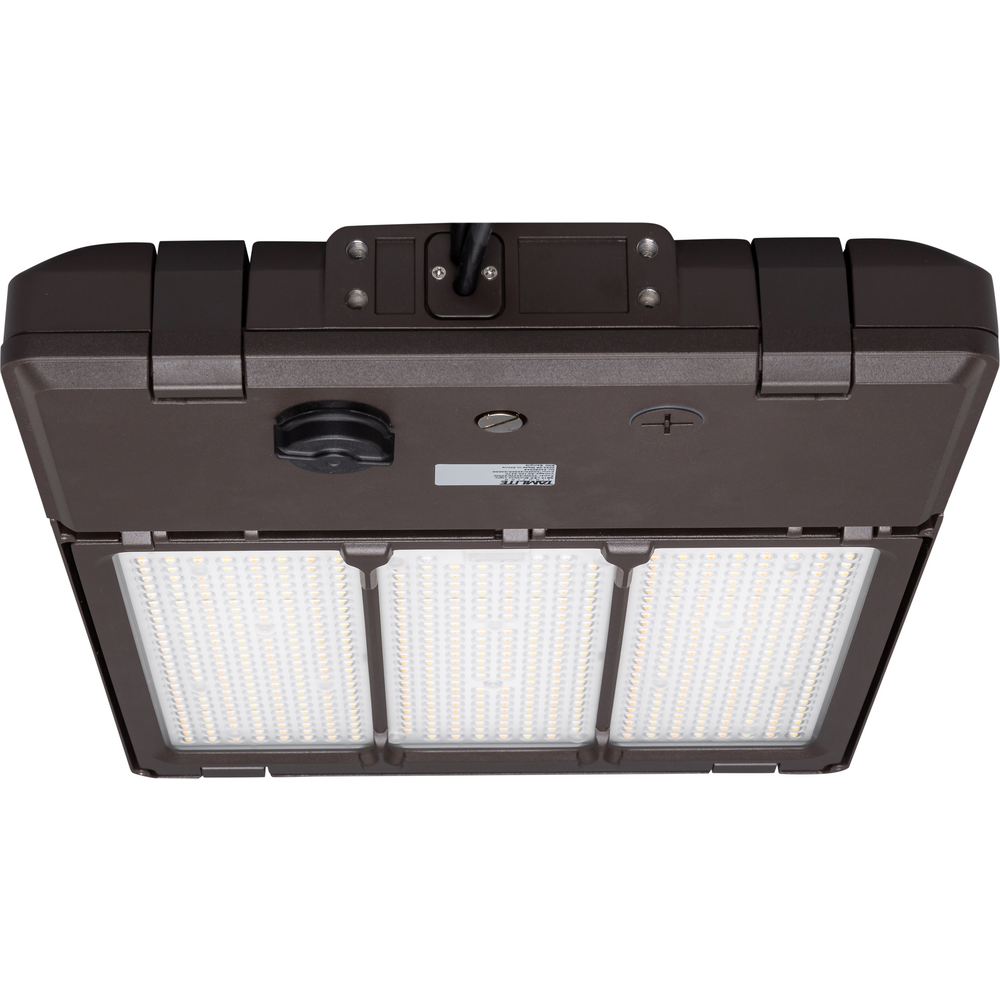

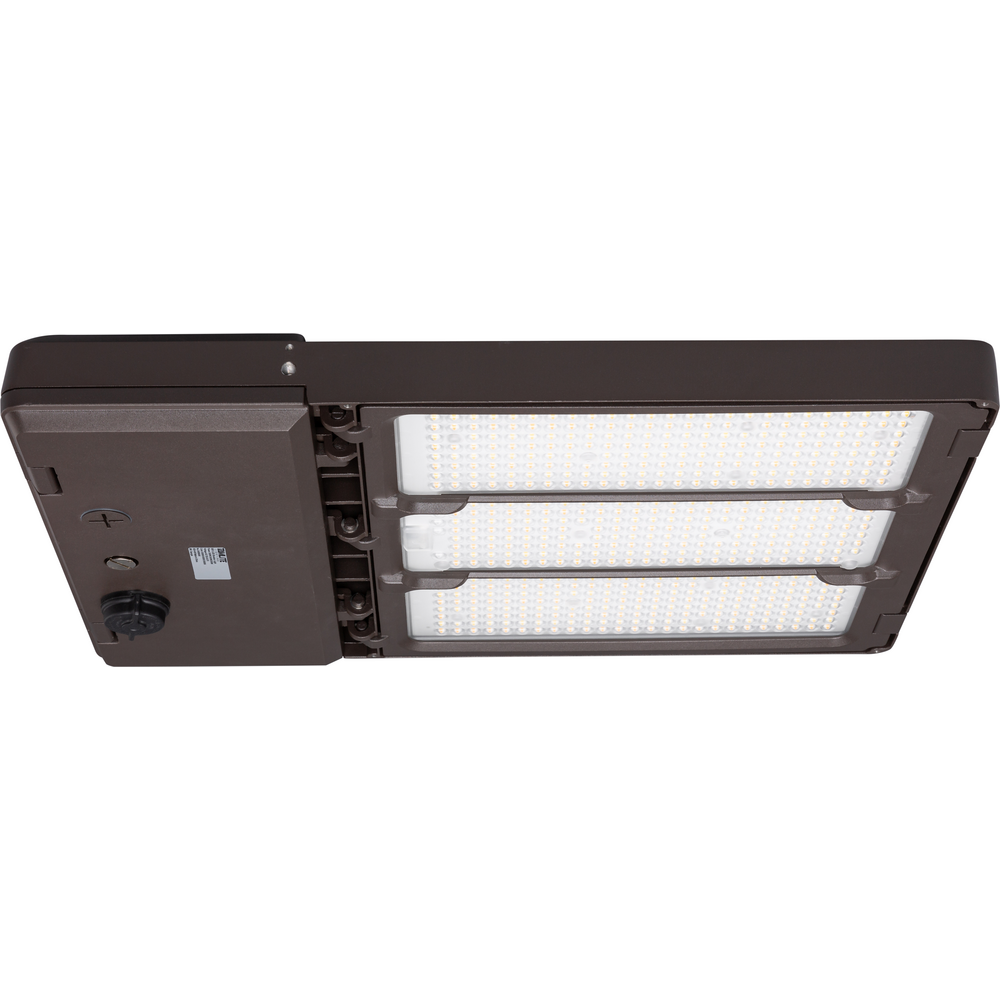

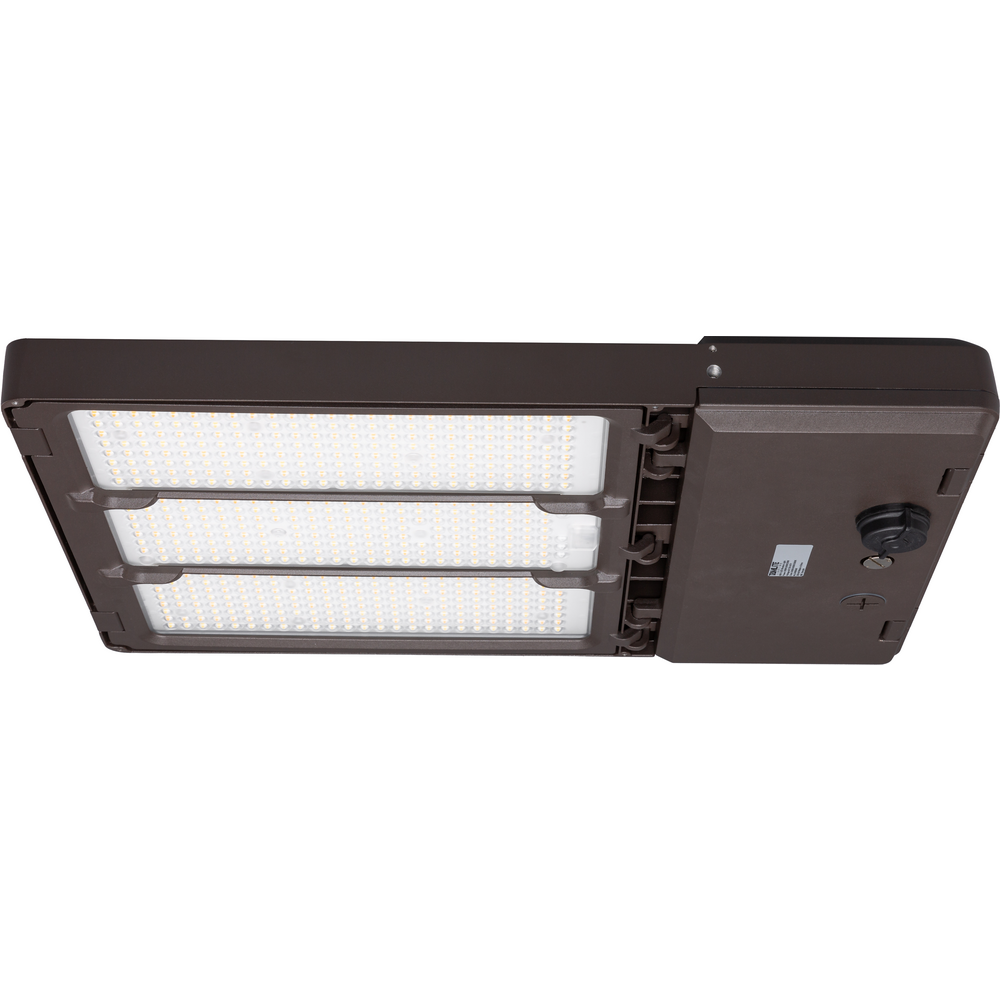

300/240/200W 3/4/5K 120-277V T3/T4/T5 Area Lights | Tamlite
Series: AL | Part #: AL-300WS-3CS-U-SO-NM-BZ
The Tamlite Lighting AL Series Area Light offers unparalleled customizability at your fingertips. Featuring quick swap optics and three different wattage/color select options, this fixture has 81 different configurations. The built in z10 socket and twist lock allow for motion and photo controls to be added without the need for tools, cutting down on your time in the air.
Download Specification SheetYou must log in or create an account to use this feature.
Log in / Register
Log in / Register
Specifications
Wattage: 300 W
Voltage Rating: 120-277 VAC
Color: Bronze
Frequency Rating: 50/60 Hz
Length: 19.65 Inches
Series: AL
Environmental Conditions: Wet/Dry Location
Stock Code: 0688-1334
Height: 2.52 Inches
Fixture Material: Die-Cast Aluminum
Style: Area light
Width: 13.98 Inches
Fixture Finish: Powder Coated
Ordering Information
| Part # | Stock Code | Height | Length | Width | Voltage Rating | Mounting |
|---|---|---|---|---|---|---|
| AL-150WS-3CS-E-SO-NM-BZ | 0688-1337 | 2.52 Inches | 15.63 Inches | 11.18 Inches | 277-480 VAC | -NA- |
| AL-150WS-3CS-U-SO-NM-BZ | 0688-1328 | 2.52 Inches | 15.63 Inches | 11.18 Inches | 120-277 VAC | -NA- |
| AL-240WS-3CS-E-SO-NM-BZ | 0688-1352 | 2.52 Inches | 19.65 Inches | 13.98 Inches | 277-480 VAC | -NA- |
| AL-240WS-3CS-U-SO-NM-BZ | 0688-1331 | 2.52 Inches | 19.65 Inches | 13.98 Inches | 120-277 VAC | -NA- |
| AL-300WS-3CS-E-SO-NM-BZ | 0688-1355 | 2.52 Inches | 19.65 Inches | 13.98 Inches | 277-480 VAC | -NA- |
| AL-300WS-3CS-U-SO-NM-BZ | 0688-1334 | 2.52 Inches | 19.65 Inches | 13.98 Inches | 120-277 VAC | -NA- |
