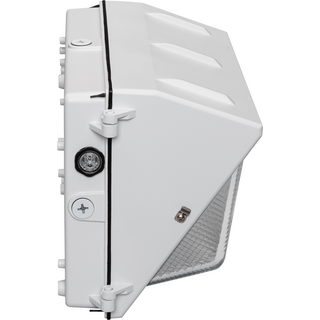

W2LED-WS-3CS-WH Wattage and Color Selectable Wallpack in White
Series: W2LED | Part #: W2LED-WS-3CS-WH
Download Specification SheetYou must log in or create an account to use this feature.
Log in / Register
Log in / Register
Specifications
Voltage Rating: 120-277 VAC
Rated Input Voltage Range: 120-277 VAC
Color: White
Frequency Rating: 50/60 Hz
Weight: 13.5 Pounds
Length: 15.06 Inches
Series: W2LED
Lumens: 6,900/8,300/11,050 lm
Height: 9.29 Inches
Wattage: 50/60/80 W
Master Case Height: 11.625
Control Type: Switch
Socket Type: LED Boards
Stock Code: 0545-2164
Master Case Length: 15.375
Case Weight: 9.5
Fixture Material: Die-Cast Aluminum
Width: 7.46 Inches
Fixture Finish: Powder Coated
Ordering Information
| Part # | Stock Code | Height | Length | Width | Voltage Rating | Mounting |
|---|---|---|---|---|---|---|
| W2LED-WS-3CS-WH | 0545-2164 | 9.29 Inches | 15.06 Inches | 7.46 Inches | 120-277 VAC | -NA- |
| W2LED604K | 0530-5662 | 9.29 Inches | 15.06 Inches | 7.46 Inches | 120/277 VAC | -NA- |
| W2LED805K | 0305-5551 | 9 Inches | 14.271 Inches | -NA- | 120/277 VAC | -NA- |
| W2LED805K-EM | 0439-2639 | 9.29 Inches | 15.06 Inches | 7.46 Inches | 120/277 VAC | -NA- |
| W2LED805K-PC | 0545-3424 | 7.4 Inches | 14.27 Inches | 9.29 Inches | 120/277 VAC | -NA- |
